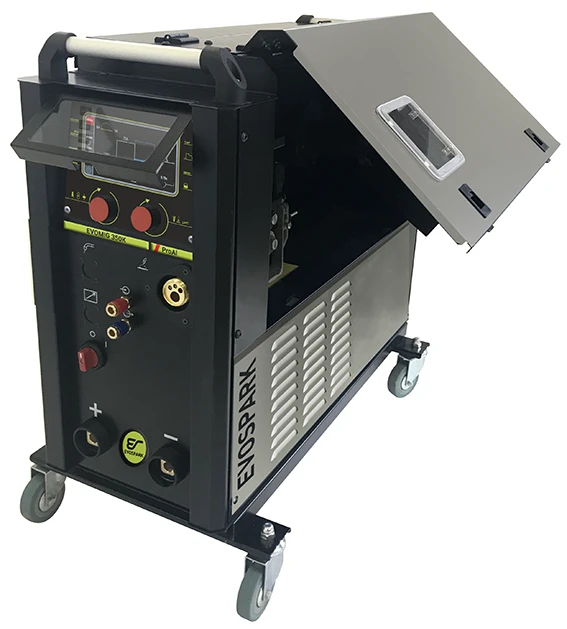

EVOMIG 350K. Machine for manual and semi-automatic welding

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 350A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).
It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control cycle of welding arc parameters is 6.6 µs.
Structurally designed in a monoblock design - the welding wire feeder and the power source are placed in one housing.
It is completed with the system of remote control and documentation of parameters of WeldWeb PAC.

Technical Specifications

Type of product according to PP RF 616	Arc welding equipment;
Minimum welding current	25 A
Operating voltage	380 V
Rated welding current	350 A
Manual arc welding	20-350 ?
Weight	55.5 kg
Weight	55.5 kg
Maximum power consumption, kW	12.2
Operating modes (continuous/pulse)	pulsed and short-pulsed
Length	740 mm
Width	300 mm
Height	660 mm
No-load voltage	93 V
Maximum welding current	350 A
Type of welding current	permanent
Semi-automatic welding	25-350 ?
argon-arc welding	3-350 ?
AC mains supply voltage	300...500 V
Mains frequency	50...60
Type of welding voltage regulation	smooth
Load Duration (LL)	100 %
Dimensions	740x300x660 mm
Mark	evospark
Equipment	power source, integrated wire feeder upp, liquid cooling unit bjo mig, cylinder trolley, welding torch, ground cable, cable package, remote parameter control system pac weld web
Current intensity at 100% SP	350 A
Insulation class	?
Degree of protection	ip 34
EFFICIENCY	96 %
Cos f	0,99

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
