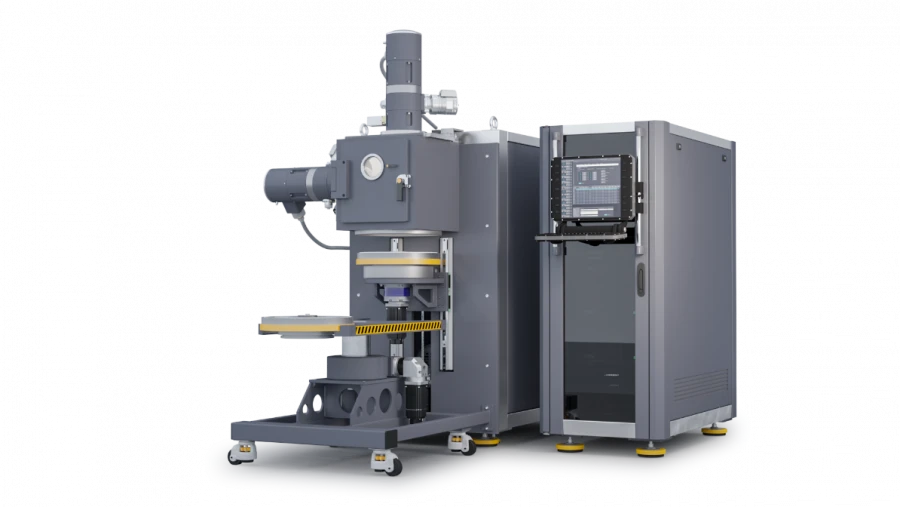

Electron beam welding machine TETA 12E150C
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
The unit is used for welding parts of automotive industry, such as gears, shafts and wheels of turbocharger, pulleys. The total production cycle time is less than one minute.
THE UNIT IS EQUIPPED WITH:
- Optical beam co-axial surveillance system;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/spark cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
THE UNIT IS EQUIPPED WITH:
- Optical beam co-axial surveillance system;
- Reflected electron observation system;
- Automatic pointing and focusing;
- Electron-beam gun with direct/spark cathode or plasma cathode;
- Vacuum pumps from the world's leading manufacturers.
Specifications
Type of product according to PP RF 616
High-vacuum electron-beam installations
Type of product according to PP RF 616
High-vacuum electron-beam installations
Power
B1/B8 2100/900 MHz kW
Internal dimensions of the vacuum chamber
360×360×360 mm
Accelerating voltage
60 kV
Maximum beam current
200 mA
Beam current stability
0.1 mA
Beam deflection angle
±7°
Cathode type
Direct filament, Indirect filament
Reduced pumping time
20
Time of filling
3
Faceplate diameter
200 mm
Faceplate aperture
SBVVBG mm
Rotation speed
0,1 - 200 rpm
Moving the cannon
150 mm
Cooling system
Liquid, built-in
Pneumatic system
built-in
Power supply voltage
3 phases, 380 V, 50 (60) Hz
Mark
THETA 12E150C
Type
Electron beam welding unit
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
