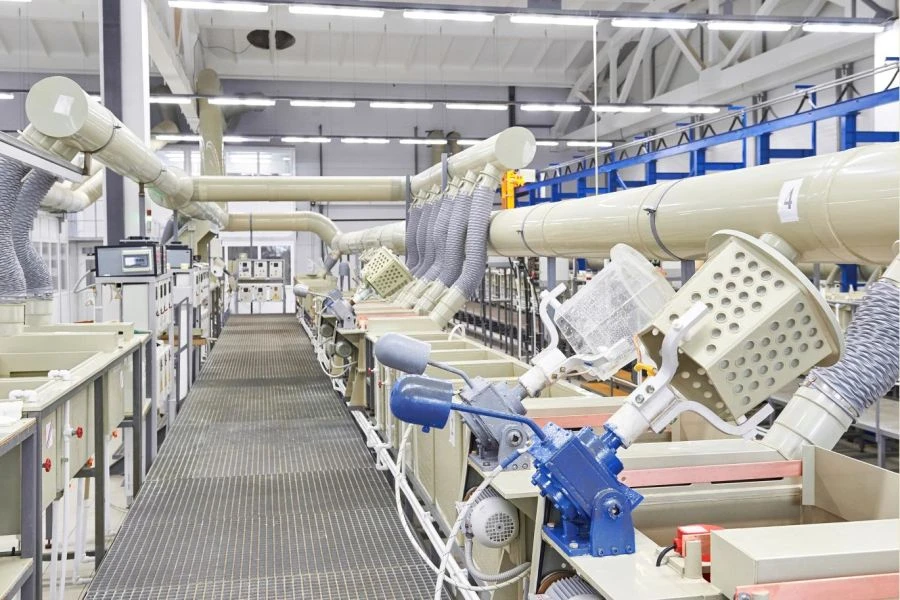

Complete Galvanic Line with Bell-Type Baths for Efficient Electroplating Applications

Electroplating Equipment

Manufacturer: Karachev Electrodal OJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Galvanic lines are complete equipment for sequential performance of chemical and electrochemical operations in galvanic production consisting of one or several galvanic baths united by a common frame. Upon agreement, it is allowed to manufacture tanks of other dimensions and materials in accordance with the requirements of specifications and specifications. The delivery set includes: frame (frame) complete with service platform; bath (s) and tanks; control cabinet (s) (rack); additional cabinet equipment; ventilation system; additional galvanic equipment (filtering unit, accumulator, working tables); assembly elements and a set of fasteners for installation at the place of operation; technical and accompanying documentation. The line is equipped with: automatic maintenance of the set temperature; continuous filtration and stirring; control of electrolyte pH; movable bell motion and its rotation

Specifications

Type of product according to PP RF 616

Specialized equipment for other non-metallic materials

Type of galvanizing line

Bell type bath line

Climatic execution and placement category according to GOST 15150

U4, UHL4

Installation altitude above sea level up to

1000 m

Seismic resistance

C0, C, PS

Material of manufacture of the equipment

Polypropylene, polyethylene, PVC, PVDF, corrosion-resistant steel

Form execution

Rectangular vertical, rectangular horizontal, cylindrical vertical, cylindrical horizontal

Mounting version

Underground, aboveground, semi-underground

Length of rectangular vessels

300...18000 mm

Width of rectangular containers

300...9000 mm

Height of rectangular vessels

300...4500 mm

Diameter of cylindrical vessels

500...4500 mm

Height of cylindrical vessels

1500...9000 mm

Rated AC voltage

220...380 V

AC frequency

SBVVBG

Protection degree of control cabinets according to GOST 14254, not less than

IP65

Grounding system according to GOST R 50571.5.54

TN-S

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
