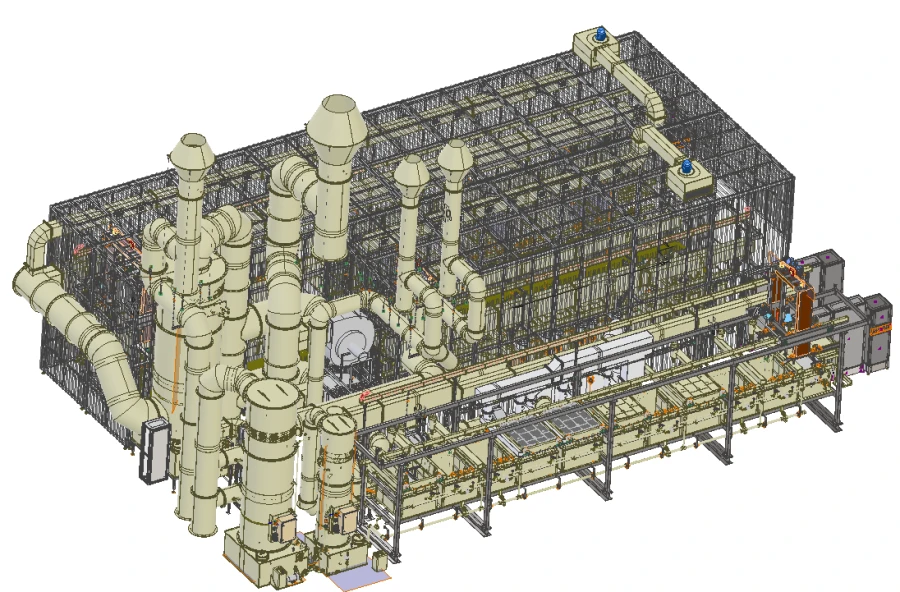

Mechanized Auto-Operator Three-Row Chemical Passivation Line for Corrosion-Resistant Steels and Etching

Mechanized Auto-Operator Three-Row Chemical Passivation Line for Corrosion-Resistant Steels and Etching

Brand: VITRI

$90,000 - $360,000 USD

MOQ: 1 pieces

Key Features

Overall dimensions of the line (DxWxH), max.: 17 x12x 5 m

Line power consumption: 588.5 l

Materials to be processed: Corrosion resistant steels, titanium alloys, nickel alloys

Shape of workpiece: Miscellaneous

Supplier Information

VITRI STO CORPORATION LLC

🇷🇺 📦 🏭 🛡️

View All Products

Quick Inquiry

Description

The line includes three rows, located rectilinearly, the total number of baths - 24 pcs., (10 baths + 1 loading-unloading - chemical passivation of stainless steels; 8 baths + 1 loading-unloading - etching of titanium; 6 baths + 1 loading-unloading - etching of steel parts on hangers). There are metal constructions for fixing of all baths and bridges for servicing of 3 lines.

Specifications

Overall dimensions of the line (DxWxH), max.

17 x12x 5 m

Line power consumption

588.5 l

Materials to be processed

Corrosion resistant steels, titanium alloys, nickel alloys

Shape of workpiece

Miscellaneous

Width (diameter)

5...500 mm

Height (thickness, wall thickness)

2...500 mm

Method of heating the solution, except for cold water washing baths

electric

Warm-up time to operating temperature

2 kcal/h

Length of workpiece

5...1000 mm

Type of power supply

Three-phase

Line design

Three-row mechanised with auto-operator moving parts on baths

Auto-operator control modes

automatic

Lifting mechanism of the auto-operator

Tape

Number of loading/unloading baths

1

Number of loading/unloading baths

1

Number of loading/unloading baths

1

Number of baths in the line (without loading and unloading)

8

Number of baths in the line (without loading and unloading)

10

Number of baths in the line (without loading and unloading)

6

Workpiece weight

0.005...100 m² living area

Load capacity of the truck operator

400 m² living area

Cold water consumption (including cooling coils)

4.8 bit/s

Compressed air consumption

23 bit/s

Supply mains voltage

380 thousand m³

Overall dimensions of internal each bath on the line(DxWxH), not less than

1500x1200x1300 mm

Installed volume, including service area, external (DxWxH), max.

2500x1700x1800 mm

Installed volume, including service area, external (DxWxH), max.

2000x1500x1500 mm

Overall dimensions of internal each bathtub on the line (DxWxH), not less than

1000x800x800 mm

Installed volume, including service area, external (DxWxH), max.

2000x1300x1500 mm

Overall dimensions of internal each bathtub on the line (DxWxH), not less than

1000x600x800 mm

Area of simultaneous loading of parts into one bath, not more than

0.8 mile

Working water pressure, not more

0.2 thous. t storage

Operating pressure of compressed air, not more than

0.4 thous. t storage
