Compact Rotary Installation MPU-8 SPAN.402111.009 for Efficient Equipment Movement
Manufacturer:
SPARK OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description

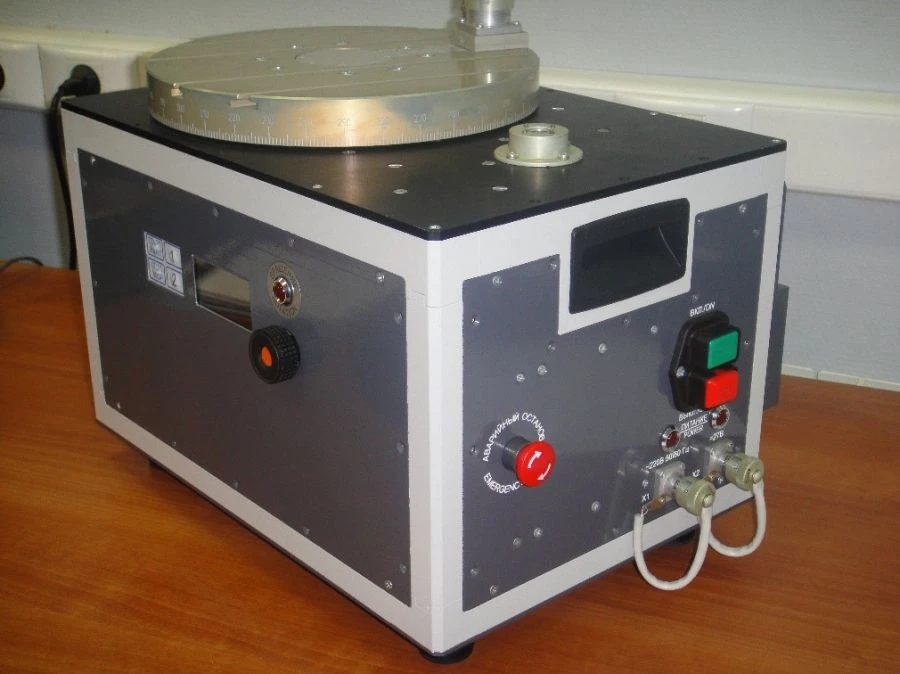

Small-size rotary installation MPU-8 provides rotation of the equipment fixed on the platform weighing up to 20 kg with angular velocities from 0,03 to 150 deg./s in the horizontal or vertical plane. MPU-8 is designed for testing of angular velocity sensors.
Specifications
AC (50 Hz) or DC supply voltage
27 V
Power consumption
300
Length
455 mm
Width
325 mm
Height
365 mm
Weight of rotary unit
25 kg
Maximum permissible load on the turntable
20 kg
MPU-8 is registered in the State Register of Measuring Instruments of the Russian Federation. Number of certificate of type appr
68672...17
Angular velocity reproduction range
0.03...150
Tolerable relative error limits of angular velocity reproduction
1 %
Instability of angular velocity reproduction
2 %
Number of electrical lines switched by the turntable slipformer
24 pcs
Maximum current in turntable slip ring circuit
4.75 A
Assigned service life
15 year
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
