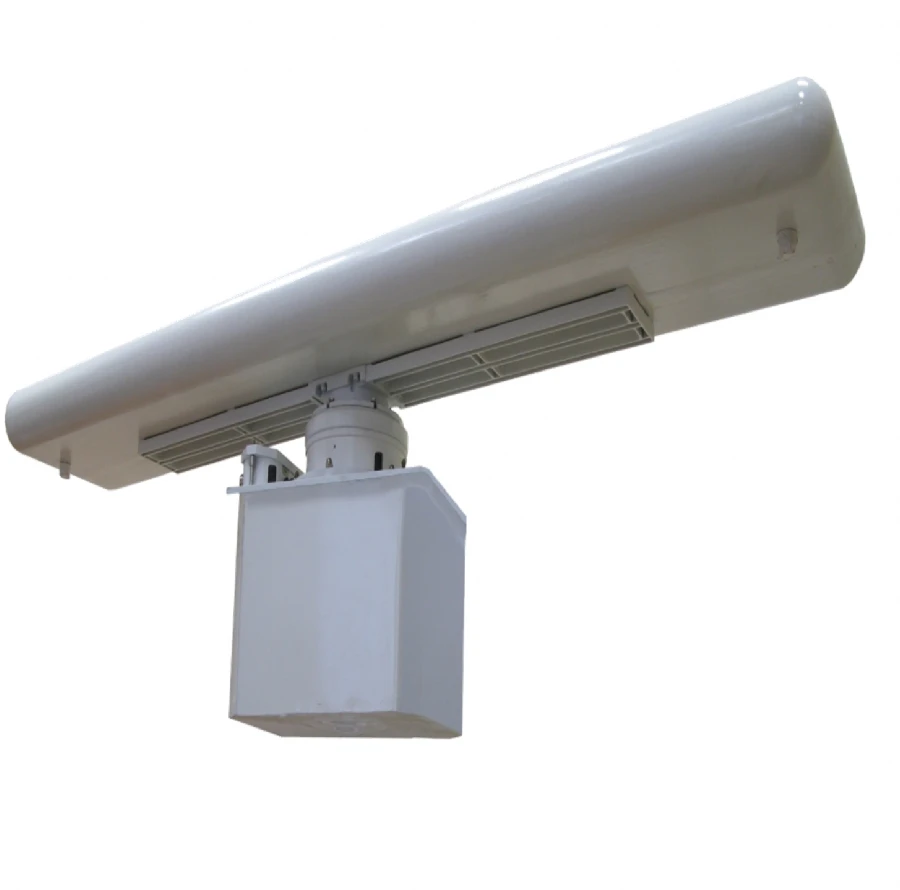

Coastal Radar Station "Neva-B" Model 2 for Automated Monitoring

Radar Equipment

Manufacturer: MKIS CJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

Coastal radar station "Neva-B", type 4

Description

The coastal radar station (BRLS) "Neva-B" KUFV.461512.001-01 version 2 of millimetre (Ka) wave range is designed for automated monitoring of water areas and territories of large area or length, adjacent to especially important objects, strategic objects, especially dangerous objects. It is used in security engineering complexes as a means of early detection and tracking of surface and ground targets, issuing target designation for optical-electronic surveillance equipment. Characteristics of the Neva-B radar system allow it to "work" on ultra-small targets and targets such as "swimmer's head", "man" in the near zone.

Specifications

Number of simultaneously escorted targets, not less

100 pcs

Pulse power of the transmitter, not less than

B1/B8 2100/900 MHz kW

DN width in azimuthal plane, not more than

0.26

DN width in the angular plane, not more than

Distance resolution, not worse than

15 m

Azimuth resolution, not worse than

0.5

Antenna rotation speed

10...60

Power supply voltage

220 V

Weight of UAPP

132 kg

Completeness

Antenna receiving and transmitting unit (ARTU); Electronic switchboard; Service indicator; Set of spare parts, tools and accessories (single); Set of assembly parts; Set of operation documentation; Set of packing.

Frequency range

33400...34200

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
