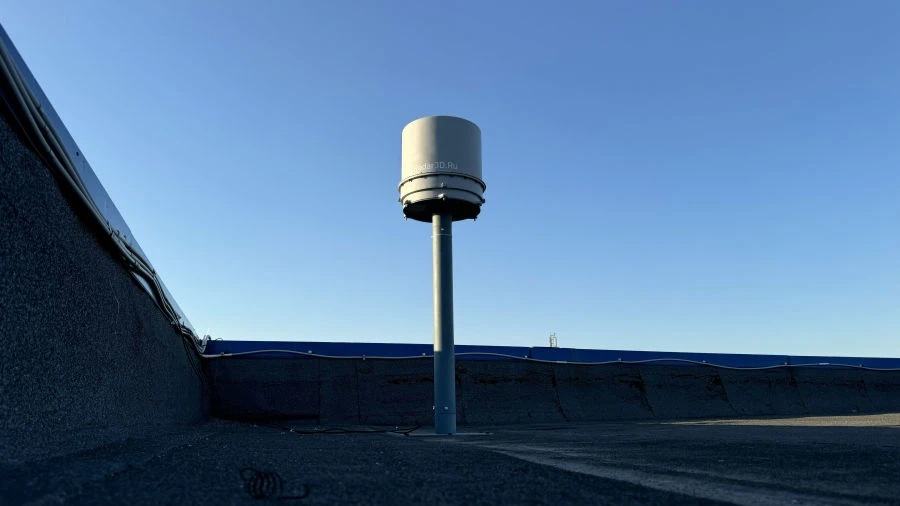

Object Radar Station "Repaynik-K" for UAV Detection and Tracking

Radar Equipment

Manufacturer: SOZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

ORLS "Repeynik-K" is designed for detection and tracking of UAVs in the scanning sector of 360 degrees, at a distance of up to 15 km, altitude of up to 5 km and speed of up to 200 km/h on stationary objects.

Specifications

Number of simultaneously escorted targets, not less

Polyvinyl chloride plasticate, halogen-free composition pcs

Instrumental detection range

Number of simultaneously escorted targets

Polyvinyl chloride plasticate, halogen-free composition pcs

Frequency range

9.2...9.5

Azimuth field of view

360

Place angle

Speed of full azimuth view

2.5

Range resolution

2.5 m

Azimuth resolution

1.2

Carrier frequency/operating wavelength

9.455

Directional width

Type of coordinate system used to issue the target designation

Polar

Composition of information to be issued when issuing a target designation

Azimuth, estimated altitude, distance to object

Operating temperature range

-40...50 °C

Data exchange, issuance of target forms and target designations

Ethernet (RJ-45)

Possibility of networking several stations

Armoured glass

Integration with suppression systems (REB)

Armoured glass

Radiated power

2 W

Power consumption

65 W

Power supply voltage

220 V

Overall dimensions (DxWxH), m

0.3x0.46x0.65

Product weight

20.5 kg

Basic equipment

ORLS "Repeynik-K", painting of the station with standard colour (grey/white), packing material, training of one operator to work with ORLS (on the territory of the enterprise), 1 year warranty on the product.

Possible extension of the basic equipment

Telescopic tripod for temporary installation, camouflage colouring or colouring with infrared mission, various electronic warfare (EW) modules, operator's ARM (standard, tablet or IP65 protected laptop).

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
