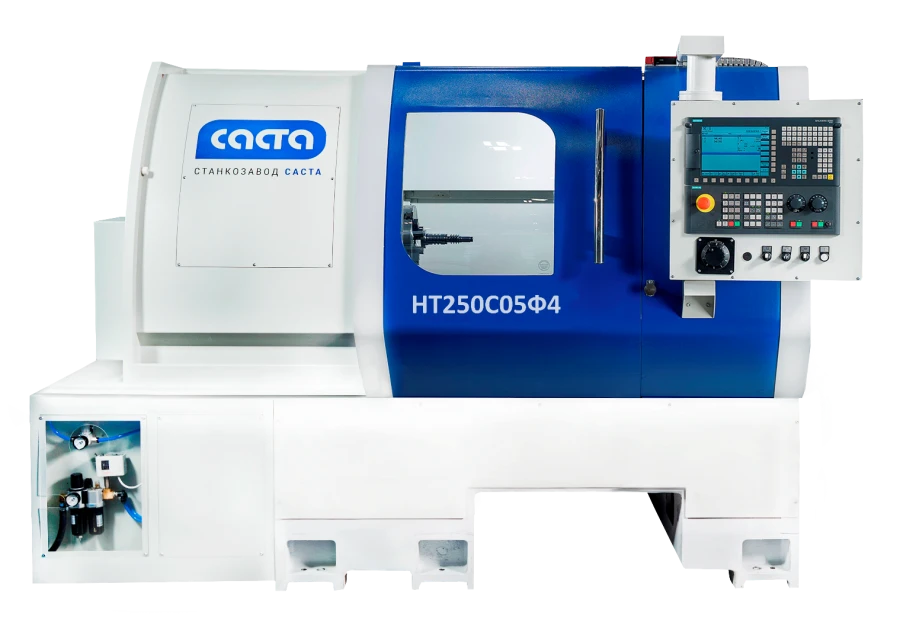

CNC LATHE NT250C05F4

Manufacturer:
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Key Highlights

  • Made in Russia - engineered for durability
  • Suitable for challenging environments
  • Lower cost of ownership than European alternatives
  • Bulk orders available with volume discounts
  • Documentation and customs clearance assistance provided
The NT250 lathe machining centre combines high-speed machining capabilities, high positioning accuracy and repeatability, and high torque. All of these features expand the machine's technological capabilities, allowing for greater flexibility.
The rigid, solid cast iron bed guarantees long-term stability of the machine's geometric accuracy. The bed is tilted at 30° to ensure compact dimensions and facilitate chip evacuation.
-All linear axes of the machine are equipped with backlash-free roller guideways, which guarantee static and dynamic rigidity for a long service life.
-The machine spindle is assembled on four tapered bearings and has reduced runout in axial and radial direction even under heavy cutting conditions.
-Transmission of rotation from the main motor is transmitted to the spindle by means of a poly-V-belt.

Technical Specifications

Type of product according to PP RF 616 Turning and screw-cutting machines (universal, with CNC, CNC)
Width 1820 mm
Height 1680 mm
Machine weight, not more 3200 kg
Length 2500 mm
Maximum spindle speed 5000
Maximum torque 109/159 (797/997) nm
Speed control stepless in 2 ranges
Main engine power fanuc: 15/18.5 kW, siemens: 12/15 kW
Chuck diameter 210 (250) mm
Chuck type Hydraulic
Diameter of the hole in the spindle for the bar ?52 (?65) mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
