Available for Import

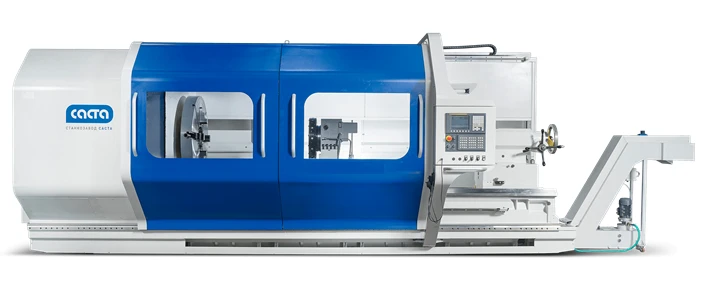

CNC lathe model CA1100C20F3
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
- The range of spindle speed control allows machining of products both from ordinary ferrous and non-ferrous metals and from alloy steels
- The one-piece grey cast iron bed and the wide prismatic and flat slideways guarantee static and dynamic rigidity for a long service life.
- For machine tools with a machine centre diameter of more than 5 m, the bed is made of several solid cast sections.
- Inside the bed there are large sloping openings to facilitate chip slippage and minimise thermal effects.
- The high (up to 6675 Nm) torque at the spindle allows heavy duty machining.
Technical Specifications
| Type of product according to PP RF 616 | Turning and screw-cutting machines (universal, with CNC, CNC) |
|---|---|
| Machine weight, not more | 11000 kg |
| Length | 6183 mm |
| Width | 2329 mm |
| Height | 2200 mm |
| Width without remote control/ with remote control | 3059 mm |
| Largest diameter of the workpiece to be mounted above the bed | 1080 mm |
| Largest diameter of the workpiece to be machined above the slide | 660 mm |
| Maximum mass of the part to be installed | 8000 kg |
| X-axis travel (transverse movement of the slide) | 625 mm |
| Z-axis travel (longitudinal movement of the slide) | 1920 mm |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
Shipping & Payment Information
Shipping Terms
- FOB: Novorossiysk, Russia
- CIF: Available to major ports worldwide
- EXW: Manufacturer's facility, Russia
Delivery Time
- Sea freight: 30-60 days (depending on destination)
- Air freight: 14-21 days (for urgent orders)
- Production lead time: 30-90 days (depending on order size)
Payment Methods
- Letter of Credit (L/C)
- Wire Transfer (T/T)
- Escrow Services
Order Minimums
- We work with orders starting from 1 container
- You can mix different products in one container
- Volume discounts available for larger orders
Customs & Documentation Support
We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
