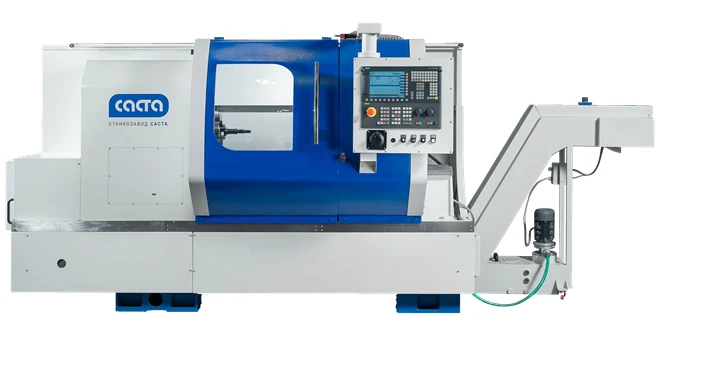

CNC Lathe Machine SA800C40F3 for Precision Turning Applications

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Available Models

CNC lathe model CA800C30F3 CNC lathe model CA700C30F3 CNC lathe model CA700C20F3

Description

- CA800C40F3 machine tool is designed for turning in chuck and centres of parts with straight, stepped and curved profile.
The range of spindle speed control allows machining of products both from ordinary ferrous and non-ferrous metals and from alloy steels
The rigid solid cast iron bed, artificially aged to relieve internal stresses, guarantees long-term stability of the machine's geometric accuracy.
Wide prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability.
The surfaces of the travelling units (carriage, tailstock) are scaled and coated with a special anti-friction coating for low wear and friction-free travelling.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Width

2080 mm

Machine weight, not more

6600 kg

Length

6393 mm

Height

1906 mm

Attachment of the turret tool

VDI40

Number of tool slots

8 (4* optional)

Moving the tailstock quill

240 mm

Diameter of tailstock quill

120 mm

Tailstock quill taper

Morse 6

X-axis travel (transverse movement of the slide)

425 mm

Z-axis travel (longitudinal movement of the slide)

3900 mm

Z-axis travel speed (longitudinal movement of the slide)

Width without remote control/ with remote control

2690 mm

Largest diameter of the workpiece to be mounted above the bed

800 mm

Largest diameter of the workpiece to be machined above the slide

540 mm

X-axis travel speed (lateral movement of the slide)

5 m/min

Maximum spindle speed

1600

Maximum torque

Fanuc: 1750/2187,5 Nm,Siemens: 2028/2535 Nm

Speed control

Dual-range gearbox

Main engine power

Fanuc: 22/26 kWSiemens: 17/20.4 kW

Spindle end

?11

Chuck diameter

400 (500, 630* optional)

Chuck type

Mechanical (hydraulic* optional)

Diameter of the spindle bore for the bar

140 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
