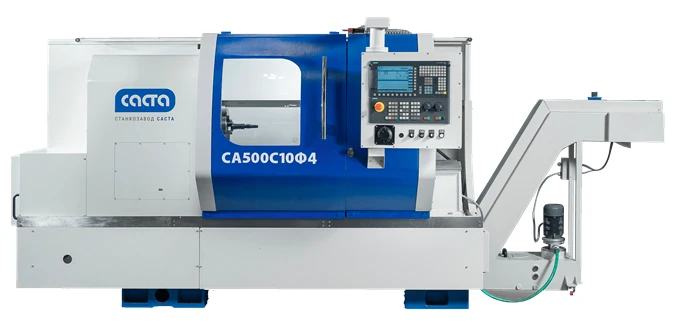

CNC Lathe Machine SA500F4 for Precision Machining

Available for Import

CNC Lathe Machine SA500F4 for Precision Turning Applications

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The machine is designed for turning in chuck and centres of parts with straight, stepped and curved profile. -The range of spindle speed control allows the machining of products from both conventional ferrous and non-ferrous metals and alloy steels. -Rigid cast iron solid-cast bed, subjected to the process of artificial ageing to remove internal stresses, guarantees long-term stability of the geometric accuracy of the machine.

-Wider (up to 510 mm) prismatic and flat slides, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability. -Surfaces of travelling units (carriage, tailstock) are scaled and coated with a special anti-friction coating for travelling with minimum wear. -Optical rulers on all axes (optional).

The machine has modifications CA500C10F4, CA500C15F4, CA500C20F4, CA500C30F4.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Height

2170 mm

Length

3297 mm

Width

1620 mm

Machine weight, not more

2400 kg

Largest diameter of the workpiece to be mounted above the bed

500 mm

Largest diameter of the workpiece to be machined above the slide

250 mm

X-axis travel (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

896 mm

C-axis travel (spindle rotation)

Positioning accuracy

1 mm

Z-axis screw diameter

40 mm

Z-axis screw pitch

10 mm

Z-axis drive power

1 kW

X-axis screw diameter

32 mm

X-axis screw pitch

5 mm

X-axis drive power

1 kW

Maximum spindle speed

3500

Chuck diameter

250 mm

Diameter of the hole in the spindle for the bar

55 mm

Tool change time

Number of tool slots

8 pcs

Maximum rotational speed of the drive tool

4000

drive tool power

3 kW

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Maximum pump pressure

Coolant tank capacity

140 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
