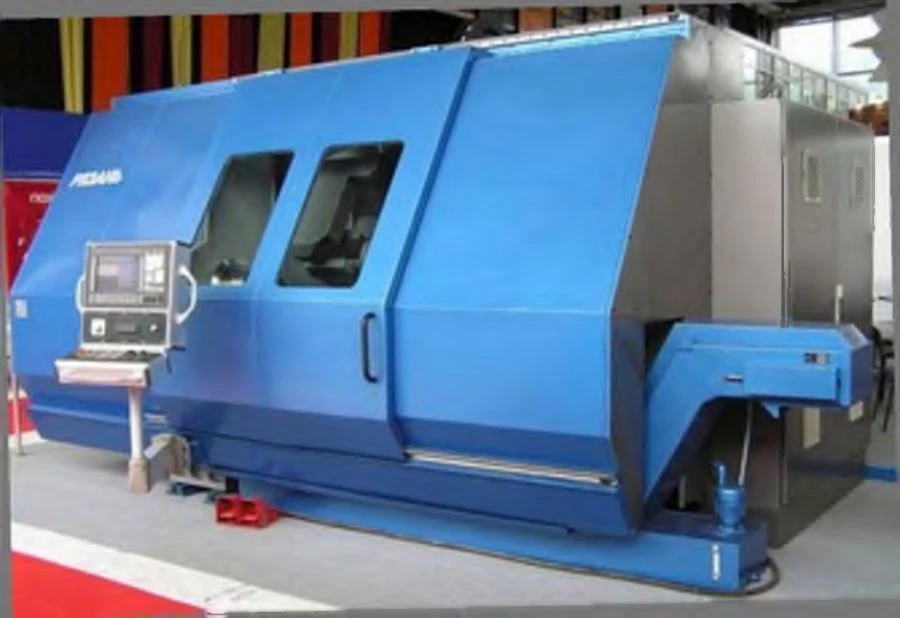

CNC Turning Center for Precision Machining Model 1715C-2D-0.5 - Ideal for Complex Profiles

CNC Metal Lathes

Manufacturer: RSZ LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The lathe machining centre with CNC model 1715C-2D-0,5 is designed for turning in centres and chuck of parts with straight, stepped and curved profile. The machine can be used for external and internal turning, milling, drilling, threading of parts made of bar up to 46 mm in diameter in automatic cycle and piece workpieces up to 210 mm in diameter in semi-automatic cycle. The machines have large ranges of feeds and spindle speeds, which fully ensure the selection of standard cutting modes for machining workpieces from various construction materials. Accuracy class P according to GOST 8-82

Specifications

Type of product according to PP RF 616

Turning machining centers (single and multi-spindle)

Machine weight, not more

5000 kg

Height

1850 mm

Width

1800 mm

Length

3100 mm

Warranty period of operation

B1/B8 2100/900 MHz

Maximum length of the workpiece to be processed, max.

500 mm

Largest diameter of the workpiece to be processed, max.

210 mm

The largest diameter of the workpiece to be installed above the bed, not more than

300 mm

Distance between centers

500 mm

Width (without remote control/ with remote control)

1800 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
