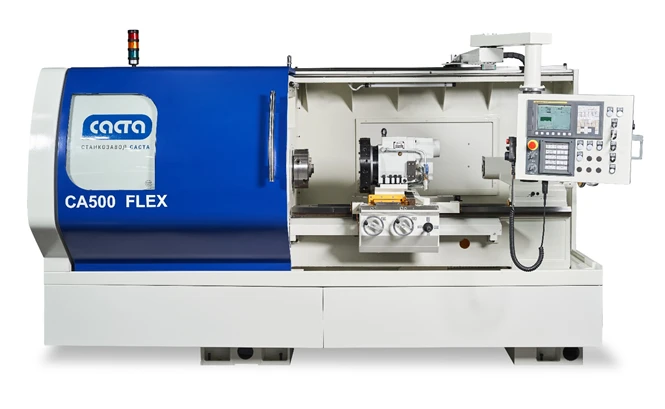

Precision Lathe Machine with Control System SA500F2 for Efficient Machining

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

-Maximally balanced machine with very robust construction. -The possibility of upgrading the operational control system (OCS) to a full Fanuc CNC system without additional installation work, by entering a service code. -Rigid cast iron bed, subjected to artificial ageing process to relieve internal stresses, guarantees long-term stability of geometric accuracy of the machine.

-Wide prismatic and flat slides, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, have high wear resistance. -Surfaces of travelling units (carriage, tailstock) are scaled and coated with special antifriction coating for travelling with minimum wear. -The machine has modifications CA500C10F2, CA500C15F2, CA500C20F2, CA500C30F2.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Width

1616 mm

Length

3297 mm

Height

2170 mm

Machine weight, not more

2400 kg

Largest diameter of the workpiece to be mounted above the bed

500 mm

Largest diameter of the workpiece to be machined above the slide

290 mm

X-axis travel (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

946 mm

Positioning accuracy

1 mm

Z-axis screw diameter

40 mm

Z-axis screw pitch

10 mm

Z-axis drive power

1 kW

X-axis screw diameter

32 mm

X-axis screw pitch

5 mm

X-axis drive power

1 kW

Maximum spindle speed

3500

Chuck diameter

250 mm

Diameter of the hole in the spindle for the bar

55 mm

Tool change time

Number of tool slots

8 pcs

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Maximum pump pressure

Coolant tank capacity

140 l

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
