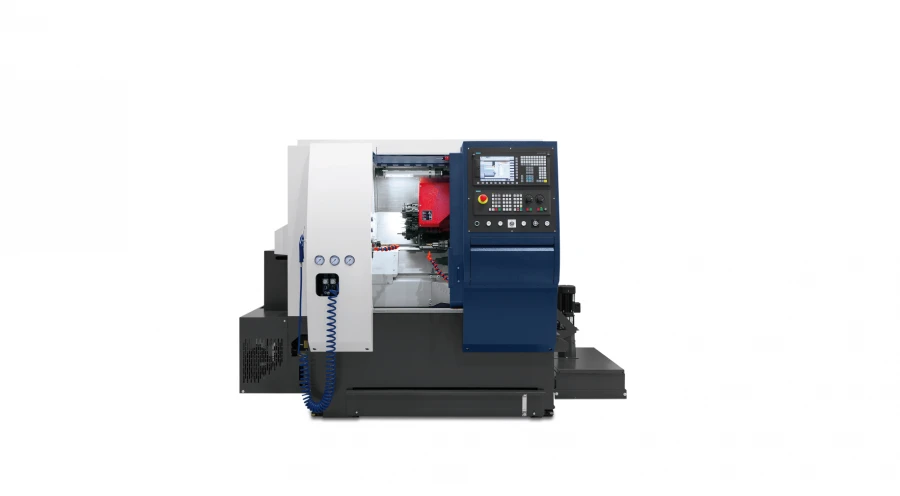

CNC Lathe Machine MT-25 by UNIMATIC for Precision Turning Applications

CNC lathe "MT-25" of "Unimatic" trade mark with IntNC PRO type CNC system (Ivanovo, Russia) (hereinafter - "machine"), is designed for complex processing of rotational parts such as shaft, flange, by performing various types of turning and milling operations, including the processing of bar blanks with diameter from 6mm to 25mm. Maximum chuck size - 95mm; maximum rotation speed - 8000 rpm; main spindle power - 6.5kW; drive tool power - 1.2kW; Y-axis - +20/- 15mm. Movement in the X-axis, mm - 100 Movement in the Y-axis, mm - 35; Movement in the Z-axis, mm - 320 Spindle torque, Nm - 30; Processing diameter above the bed - 325 mm; Processing diameter above the cross slides - 120 mm. Type of tool holder - One turret; Counterspindle - Yes/possible; Rolling guides; Sloping bed
