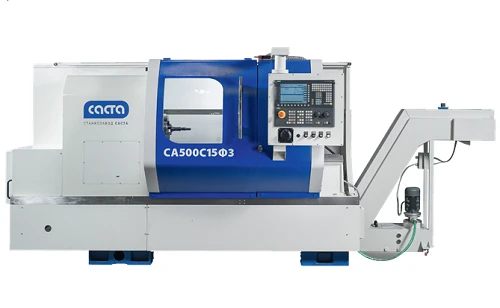

CNC Lathe Machine SA500C15F3 for Precision Turning Applications

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

- Machines are designed for turning in the chuck and centres of parts with straight, stepped and curved profile.
The range of spindle speed control allows machining of products from both conventional ferrous and non-ferrous metals and alloy steels.
The rigid solid cast iron bed, artificially aged to relieve internal stresses, guarantees long-term stability of the machine's geometric accuracy.
Wider (up to 510 mm) prismatic and flat slideways, hardened to a depth of 1.5-2 mm to a hardness of 52HRC and ground, ensure high durability.
The surfaces of the travelling units (carriage, tailstock) are scaled and coated with a special anti-friction coating for minimum wear and friction-free movement.

Specifications

Type of product according to PP RF 616

Turning and screw-cutting machines (universal, with CNC, CNC)

Length

3877 mm

Height

2170 mm

Weight

2800 kg

Width (without remote control)

1620 mm

Width (with remote control)

2220 mm

The largest diameter of the workpiece, to be mounted above the bed

500 mm

The largest diameter of the workpiece, to be machined above the slide

290 mm

Movement in the X axis (transverse movement of the slide)

278 mm

Z-axis travel (longitudinal movement of the slide)

1396 mm

Maximum speed spindle speed

3500

Maximum spindle torque

Fanuc: 688/848 Nm Siemens: 820/1025 Nm

Main engine power

Fanuc: 15/18.5 kW Siemens: 12/15 GSK 15/18,5 kW

Speed control

Stepless, 2 ranges

Diameter of the spindle bore for the bar

55 mm

Spindle end

Attachment of the turret tool

VDI40

Number of tool slots

8 (4* optional)

Moving the tailstock quill

200 mm

Diameter of tailstock quill

100 mm

Tailstock quill taper

Morse 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
