CNC Turning-Milling Machining Center for Complex Parts NT1000F4 - Precision Engineering Tool

CNC Metal Lathes

Manufacturer: SASTA PJSC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

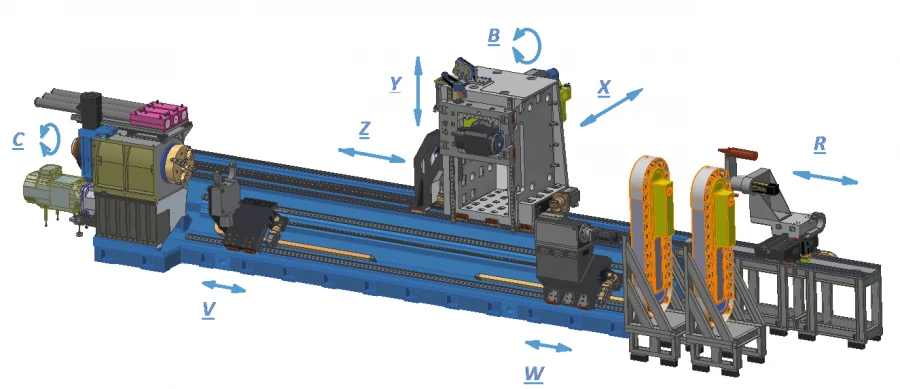

-Tokarno-milling machining centre NT1000F4 (with modifications NT1000C30F4, NT1000C50F4, NT1000C60F4) is designed for complex processing of parts - bodies of rotation of complex shape. Availability of milling and turning head with B, Y and C axis allows machining of parts with curved surfaces in one set-up. Thanks to the counterspindle, the workpiece can be machined from both sides in automatic mode. The bed is made of grey cast iron, which has high damping characteristics and guarantees long-term stability of the geometric accuracy of the machine. The bed is tilted, which ensures compact dimensions and facilitates chip evacuation. -All linear axes of the machine are equipped with backlash-free roller guideways, which guarantee static and dynamic rigidity for a long service life.

Specifications

Type of product according to PP RF 616

Lathes

Machine weight, not more

33000 kg

Height

3500 mm

Width

4000 mm

Length

7360 mm

Tank capacity

1040 l

Maximum pump pressure

4 (20* optional)

Maximum tool diameter in neighbouring sockets/across sockets

?130/?260

Tool magazine capacity

40 (80/160) pcs.

Tool change time

Type of tool attachment for mill-turn head with B and Y axis

HSK-A100/CAPTO C8/ MAS BT-50/ BMT-85

Maximum torque/30 min. of milling and turning head with B and Y axis

630/800

Drive tool power/30 min. milling and turning head with B and Y axis

22/26 kW

Maximum speed of rotation of the drive tool of the milling and turning head with B and Y axis.

10000

Chuck type

Hydraulic

Main engine power

Siemens: 30/37 (56/80*)

Speed control

stepless in 2 ranges

Maximum torque

1500/1875 Nm

Maximum spindle speed

2400;2400 (3000) rpm

Circular sensor accuracy

+/-5 sec

Sensor type on circular axis C

External circular sensor

Repeatability

+/- 0.005 mm

Positioning accuracy

0.01 mm

X/Y/Z linear axis encoder type

External measuring system

Accelerated movement in C axes

200

Accelerated movement in B axes

30 mm/min

Accelerated movement in X/Y/Z axes

40 mm/min

Working feed rate range - X/Y/Z axes

1-6000 mm/min

Travelling in the B axis (rotating the rotary joint)

220 (-110...+110) deg.

C-axis travel (spindle rotation)

±360 deg. (unlimited)

Z-axis travel (longitudinal movement of the slide)

3100 mm

Y-axis travel (vertical movement of the slide)

600(+-300)

X-axis travel (transverse movement of the slide)

-10...+500

Largest diameter of the workpiece to be machined above the slide

1000 mm

Type

Lathe-milling machines

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
