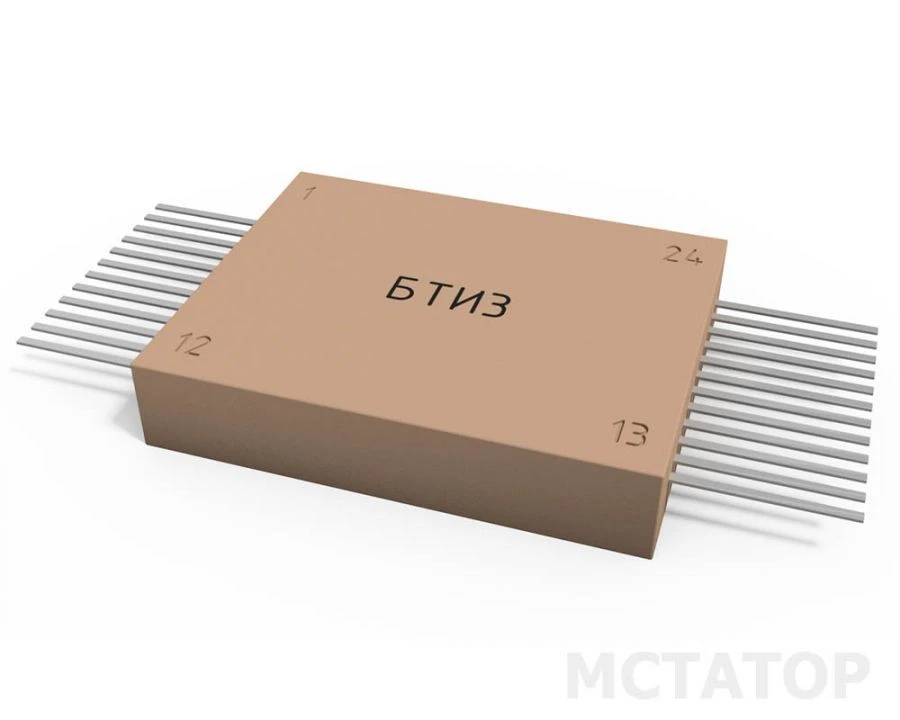

BTI3 Impulse Transformer Blocks for Microelectronics Applications

Electric Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Blocks of transformers pulse type BTI3 are designed for use in microelectronic equipment with operating voltage up to 10 V and the product of pulse duration on the input voltage from 7,5 to 50,0 ?s-V. Quality category "VP" and "OS".

Specifications

Product of pulse duration by input pulse voltage

7.5 to 50.0 (×10^-6)

Number of transformers in the unit

4 pcs

Primary winding inductance, not less than

0.75 to 5.0 (×10^-3)

Capacitance between primary and each secondary winding, not more than

36 to 220(×10^-12)

Scattering inductance, not more

1.2 to 25 (×10^-6)

Electrical insulation strength: DC voltage

100 V

Insulation resistance, not less

100 (×10^6) ohm

Magnetizing current, not more

10 (×10^-3) A

Transformation ratio, max.

1.0 to 0.33

Number of windings of each transformer

2 or 3 pcs
