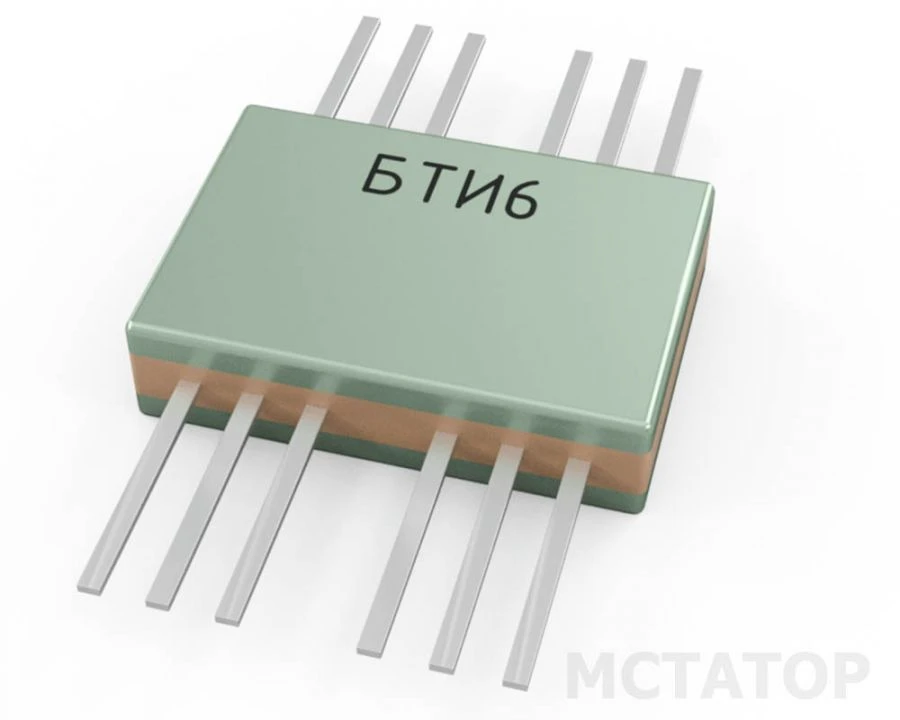

Impulse Transformer Blocks Type BTI6 for Microelectronics Applications

Electric Transformers

Manufacturer:PJSC "MSTATOR"

Price:Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Blocks of transformers pulse type BTI6 are designed for use in microelectronic equipment with operating voltage up to 24V and the product of pulse duration on the input voltage from 0,10 to 12,5 ?s?V. Quality category "VP" and "OS".

Specifications

Number of transformers in the unit

2 pcs

Electrical insulation strength:direct current voltage

150 V

Primary winding inductance, not less than

0.01 to 1.2(×10^-3)

Capacitance between primary and each secondary winding, not more than

10 to 100(×10^-12)

Scattering inductance, not more

0.13 to 22(×10^-6)

Insulation resistance, not less

500(×10^6) ohm

Magnetizing current, not more

10(×10^-3) A

Product of pulse duration by input pulse voltage

0.1 to 12.5 (×10^-6)

Electrical insulation strength: DC voltage

150 V
