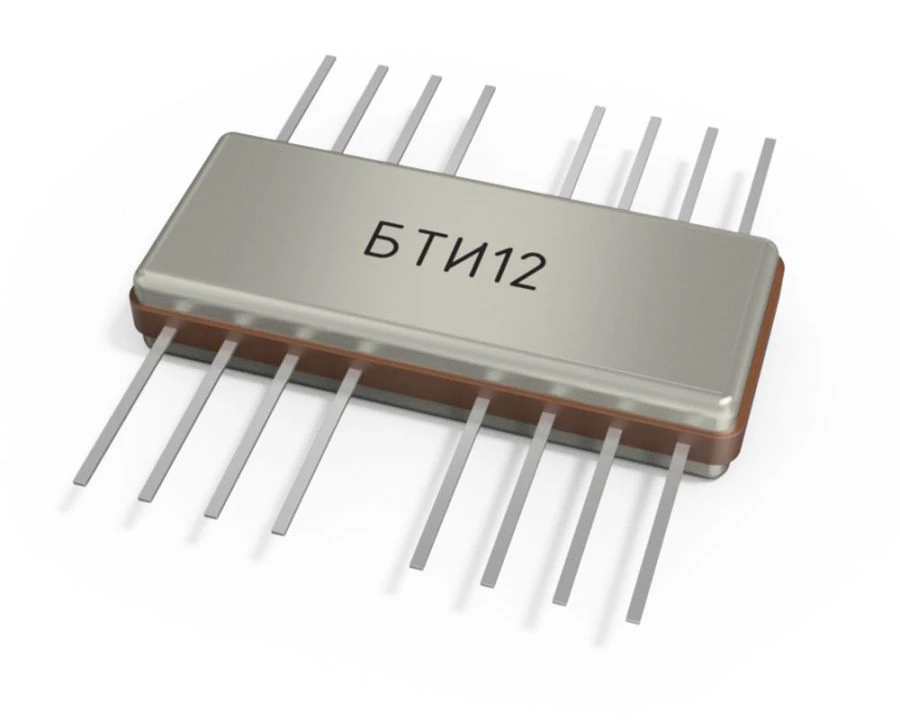

BTI12 Impulse Transformer Blocks for Gas Discharge Control Available for Import

BTI12 Impulse Transformer Blocks for Efficient Gas Discharge Panel Management

Electric Transformers
Manufacturer: PJSC "MSTATOR"
Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Description

Blocks transformers pulse type BTI12 are designed for use in control circuits gas-discharge indicator panel (GIP) to display alphanumeric and graphic information and in other microelectronic equipment with operating voltage between windings up to 250 V, maximum input voltage up to 24 V and the product of pulse duration on the input pulse voltage of 25 ?s?V. Quality category "VP".

Specifications

Primary winding inductance, not less than
0,5 (×10^-3)
Capacitance between primary and each secondary winding, not more than
17 (×10^-12)
Scattering inductance, not more
20(×10^-6)
Electrical insulation strength: DC voltage
1000 V
Insulation resistance, not less
1000(×10^6) ohm
Magnetizing current, not more
50(×10^-3) A
Product of pulse duration by input pulse voltage
25 (×10^-6)
Number of windings of each transformer
2 pcs
Number of transformers in the unit
4 pcs
Operating temperature range
-60...85 °C
Transformation ratio, max.
1
Primary winding resistance to direct current, not more than
2.2 ohm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
