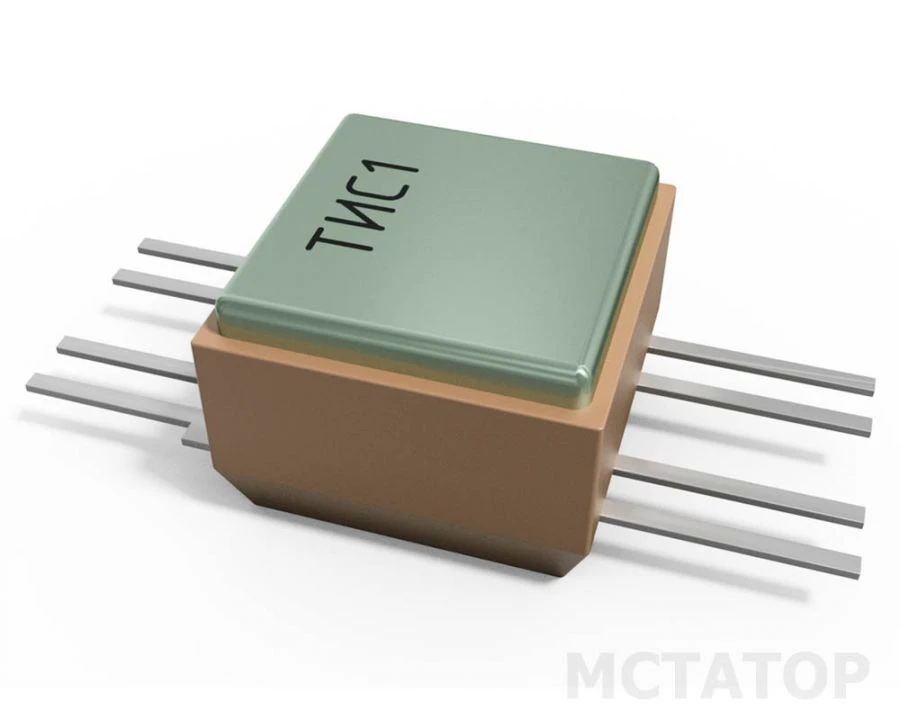

Matching Pulse Transformers TIS1 for Data Transmission

Available for Import

Matching Pulse Transformers TIS1 for Reliable Data Transmission

Electric Transformers

Manufacturer: PJSC "MSTATOR"

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Pulse matching transformers of TIS1 type are designed for application in data and information transmission systems based on standard interfaces of digital networks according to GOST R 52070 (GOST 26765.52, MIL-STD-1553B) in communication and control equipment. Quality category "VP".

Specifications

Insulation resistance (voltage 100 V), not less than

500 (×10^6) ohm

Electrical insulation strength: DC voltage

250 V

Scattering inductance of I and II windings, not more than

8 (×10^-6)

In-phase signal attenuation coefficient, not less than

Linear winding resistance (impedance) at F=75 kHz and F=1 MHz, not less

4 (×10^3) ohm

Symmetry of generator windings

2 %

Ratio of number of turns of TIS1-5 transformers

Findings 1-4:8-5 - 1.19 : 1; Findings 1-4:7-6 - 1.65 : 1

Ratio of number of turns of TIS1-4 transformers

Findings 1-4:8-5 - 1 : 3.73; Findings 1-4:7-6 - 1 : 2.67

Pulse peak decay at the output

20 %

Ratio of number of turns of TIS1-3 transformers

Pins 1-4:8-5 - 1 : 2.55; Pins 1-4:7-6 - 1 : 1.82

Ratio of number of turns of TIS1-2 transformers

Findings 1-4:8-5 - 1.12 : 1; Findings 1-4:7-6 - 1.56 : 1

Ratio of number of turns of TIS1-1 transformers

Pins 1-4:8-5 - 1.41 : 1; Pins 1-4:7-6 - 2.00 : 1

Operating temperature range

-60...85 °C
