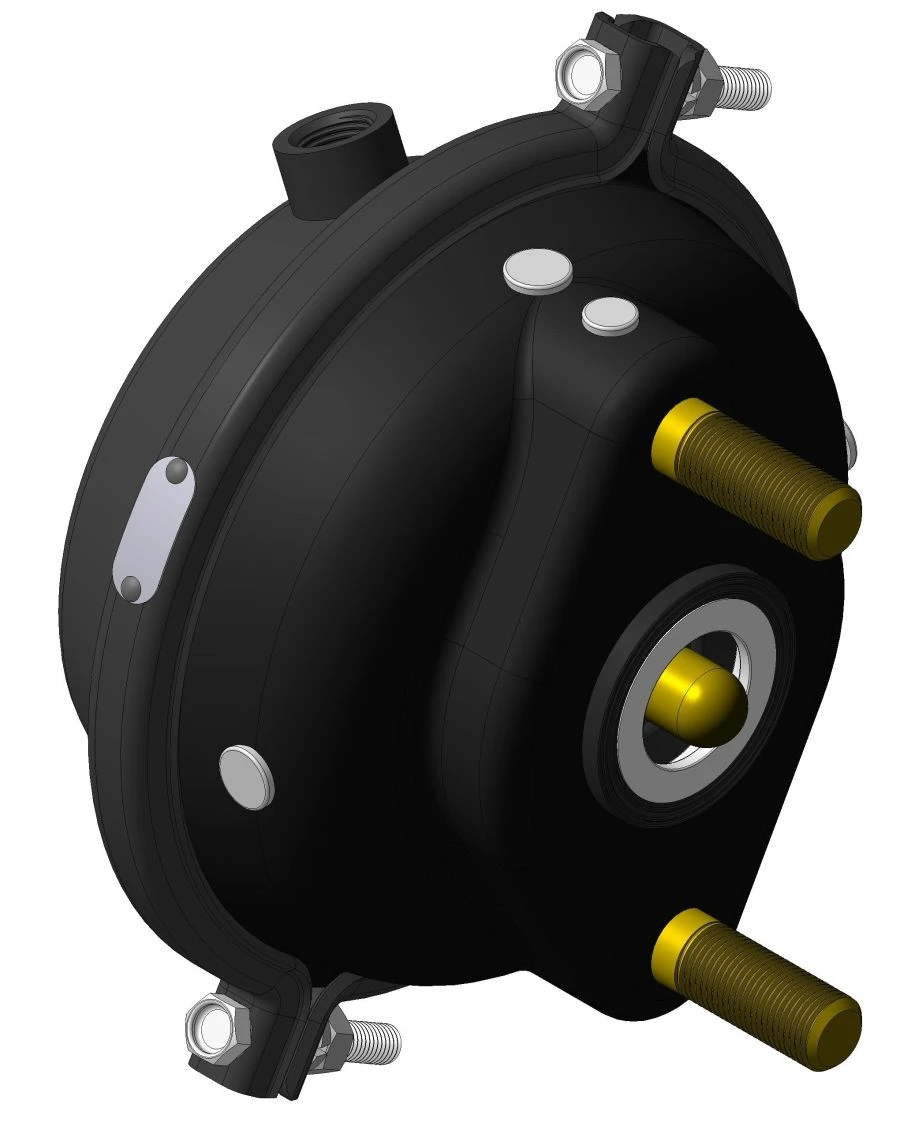

Brake chamber type 24 25.3519212-40

Pneumatic Brake Chambers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Brake chamber type 24 25.3519212-30 Brake chamber type 24 25.3519212-10 Brake chamber type 24 25.3519212-20 Brake chamber type 24 25.3519212

Brake chamber is designed to convert the energy of compressed air into work to drive braking mechanisms

Technical Specifications

Equipment	Brake chamber - 1 pc. Transport plug - 2 pcs. Passport - 1 pc (when products are delivered in batches - in each transportation package (box (box), crate, etc.)). Packaging - 1 pc.
Outreach of mounting bolts l	43 mm
Weight	3.5 kg
Temperature range	-46...80 °C
Stroke	64...68 mm
Working pressure	1 MPa
Installation of the apparatus	In accordance with the vehicle manufacturer's documentation
Maintenance of the brake chamber	In accordance with the operating manual of the motor vehicle for which the product is intended.
Safety measures	Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).
Environment	Air, possible exposure to condensate, water, dust, dirt, engine oils, fuel vapors, brake fluids, detergents, road de-icing agents.
Operating medium	Compressed air, oil and water vapors may be present.
Certificate of Conformity	NO. EAES RU C-RU.MT14.V.00124/19
Disposal information	The procedure for disposal of the product shall be determined by the Consumer.
Manufacturer's warranty	The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Storage conditions	The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Stem outreach A	15 mm
Air inlet connection thread D1, D2	16 mm
Sphere of the stem stop R	7.9...8 mm
Clamp installation angle	175...185 mm
Bolt spacing B	120 mm
Connection thread of the mounting bolts d1	16 mm
Assignment	The brake chamber is designed to convert the energy of compressed air into work to actuate braking mechanisms.

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
