Available for Import

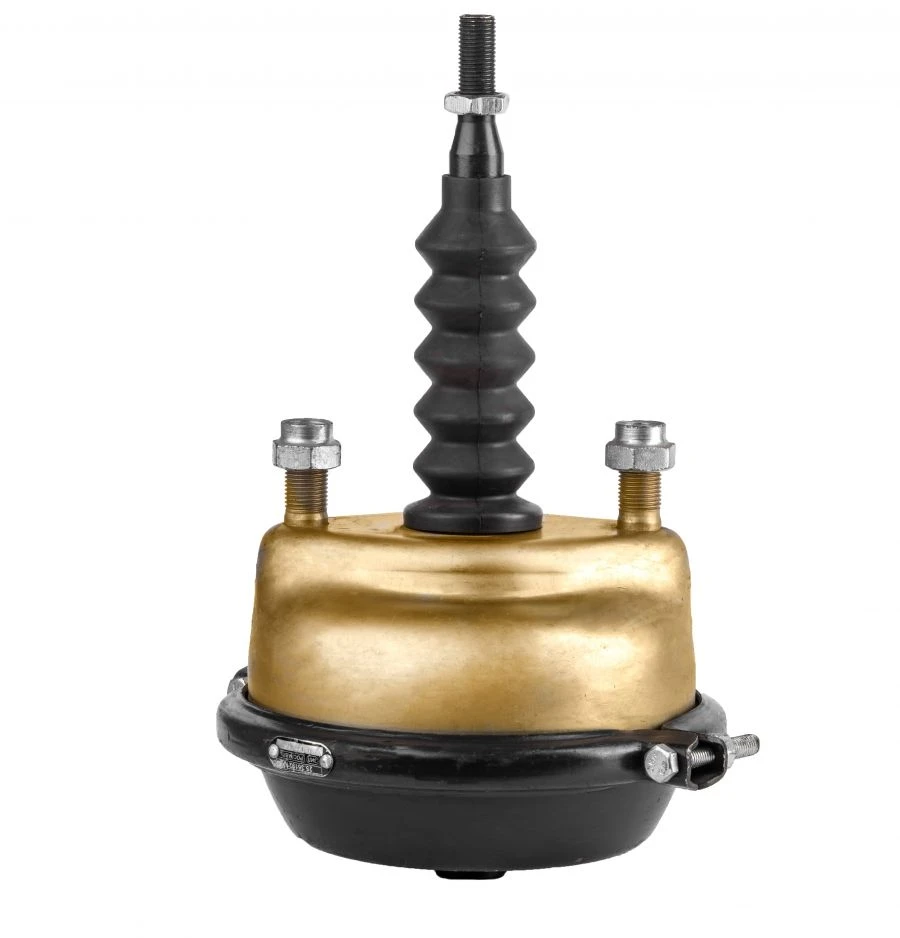

Brake chamber type 30 25.3519310-50

Pneumatic Brake Chambers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Brake chamber type 24 25.3519210-50

The brake chamber is designed to convert the energy of compressed air into work for braking mechanisms actuation

Technical Specifications

Assignment	Brake chamber is designed to convert compressed air energy into work to actuate braking mechanisms
Equipment	Brake chamber - 1 pc. Transport plug - 1 pc. Passport- 1 pc. Packing- 1 pc.
Disposal information	The procedure for disposal of the product shall be determined by the Consumer.
Manufacturer's warranty	The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Storage conditions	The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Certificate of Conformity	NO. EAES RU C-RU.MT14.V.00124/19
Safety measures	Before carrying out assembly and disassembly work on the flange connection of the brake chamber, make sure that the brake is not applied (no compressed air pressure in the chamber cavity).
Maintenance of the brake chamber	In accordance with the operating manual of the motor vehicle for which the product is intended.
Installation of the apparatus	In accordance with the vehicle manufacturer's documentation
Key size of the nut mounted on the stem, S2	21.67...22 mm
Wrench size of all-metal self-locking nut, S1	23.67...24 mm
Working pressure	1 MPa
Temperature range	-46...80 °C
Weight	4.6 kg
Stroke	71...75 mm
Clamp installation angle ?°	45
Air inlet connection thread D	16 mm
Outreach of mounting bolts l	34 mm
Connection thread of the mounting bolts d2	16 mm
Stem thread length l2	35...38 mm
Stem connection thread d1	14 mm
Bolt spacing A	120 mm
Stem outreach L	182 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.

Shipping & Payment Information

Shipping Terms

FOB: Novorossiysk, Russia
CIF: Available to major ports worldwide
EXW: Manufacturer's facility, Russia

Delivery Time

Sea freight: 30-60 days (depending on destination)
Air freight: 14-21 days (for urgent orders)
Production lead time: 30-90 days (depending on order size)

Payment Methods

Letter of Credit (L/C)
Wire Transfer (T/T)
Escrow Services

Order Minimums

We work with orders starting from 1 container
You can mix different products in one container
Volume discounts available for larger orders

Customs & Documentation Support

We provide comprehensive assistance with all export documentation, customs clearance, and logistics arrangements. Our team has extensive experience facilitating international trade with businesses in Africa, Middle East, Asia, and Latin America.
