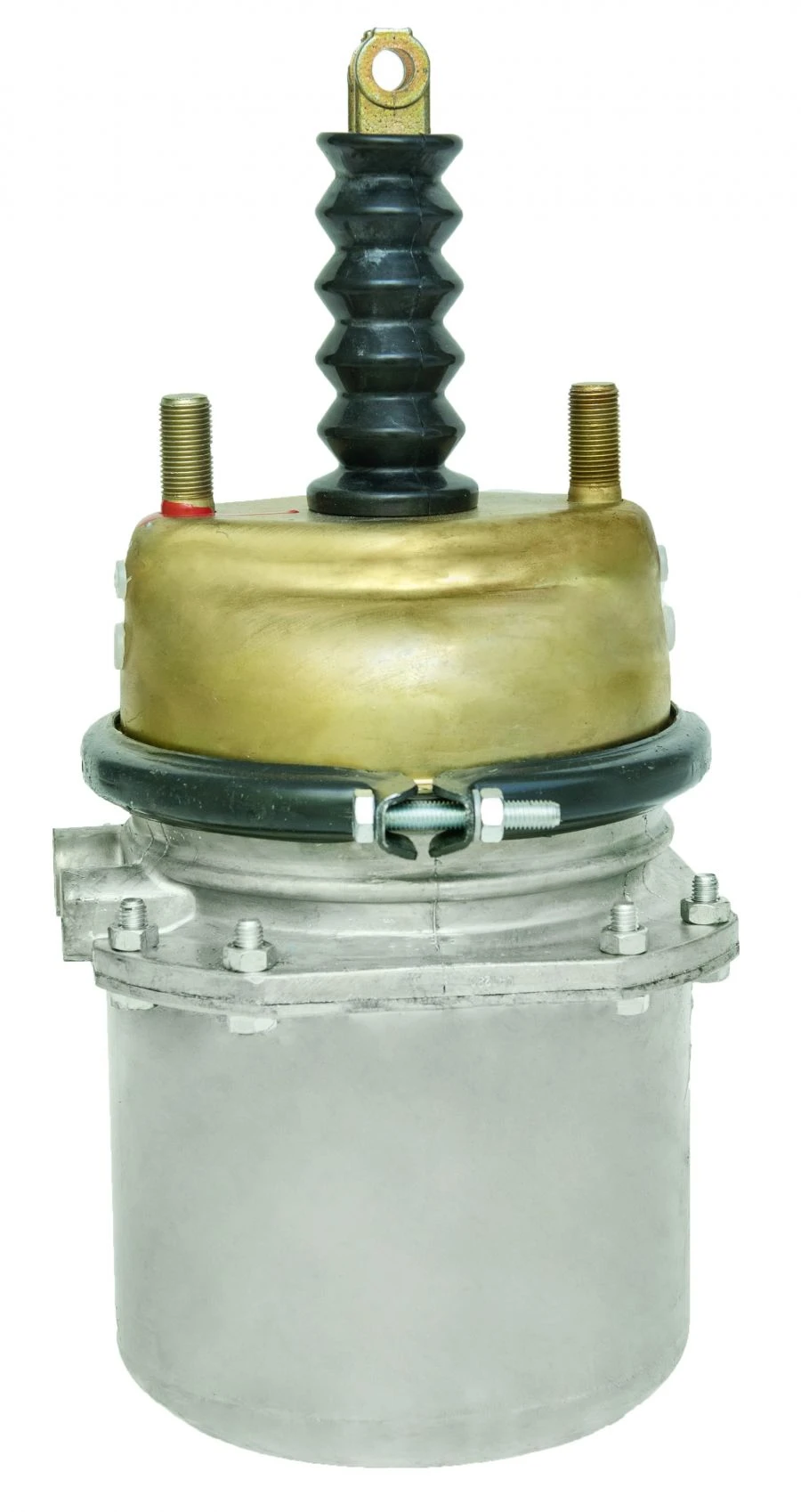

Brake chamber with spring energy accumulator type 24/20 25.3519500-10

Pneumatic Brake Chambers

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Brake chamber with spring energy accumulator is designed to actuate braking mechanisms of service, reserve and parking brakes. The spring energy accumulator is equipped with an integrated by-pass drain valve.

Technical Specifications

Equipment	Brake chamber - 1 pc. Transport plug - 2 pcs. Passport- 1 pc. Packing- 1 pc.
Stem outreach L	58 mm
Bolt spacing A	120 mm
Diameter of the connection hole in the plug d1	B1/B8 2100/900 MHz mm
Width of fork slot B	14.2 mm
Connection thread of the mounting bolts d2	16 mm
Outreach of mounting bolts l	34 mm
Air inlet connection thread D	16 mm
Clamp installation angle ?°	30
Diaphragm stroke	71...75 mm
Spring travel of the energy accumulator	64...67 mm
Center distance of the air inlet connections	56 mm
Mechanical brake release unit screw key size	26.67...27 mm
Working pressure	1 MPa
Spring-loaded energy accumulator tripping pressure	0.48...0.54 MPa
Installing the brake chamber	In accordance with the vehicle manufacturer's documentation
Maintenance of the brake chamber	In accordance with the operating manual of the motor vehicle for which the product is intended to be used
Safety measures	Repairs without special equipment are not permissible. For assembly work, be aware of the inscription on the flange of the spring energy accumulator "CAUTION! SPRING IS UNDER TENSION".
Certificate of Conformity	NO. EAES RU C-RU.MT14.V.00124/19
Storage conditions	The apparatus shall be stored in a container or on a rack under the condition of storage L according to GOST 15150-69 within six months from the date of shipment to the customer
Manufacturer's warranty	The company guarantees the compliance of the device with the requirements of GOST R 52848-2007 under the conditions of operation, transportation and storage.
Disposal information	The procedure for disposal of the product shall be determined by the Consumer.
Angle of turning of air inlet leads ?°, deg.	Flat grinder, Specialised grinder
Weight	10.55 kg

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
