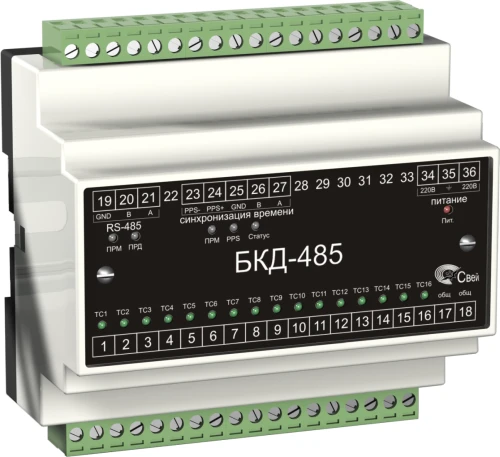

BKD-485 discrete 16-channel input module

Module discrete 16-channel input BKD-485 is designed to collect and transmit the states of signals type "dry contact" (DC) via RS-485 interface, according to communication protocol IEC 60870-5-101. The peculiarity of the module is that it has no internal terminating resistor per line. The main functions of the module are: - Monitoring the state of 16 discrete signals (TS); - Saving changes in the state of TCs and the time of change in the archive with subsequent transmission over the communication interface; - Binding of events to real time with accuracy not worse than 1 ms. Features: - BCD inputs with factory numbers 0541020001-2017 and higher can be configured for polling and transmission of 2-position TCs. - service programme is used for module configuration (interface speed change, station address change), TC operability check, log-file preparation. - the case has a fastener for installation on a standard DIN rail TN35 with a width of 35 mm, corresponding to GOST R IEC 60715-2003.
