Bimetallic thermometer TBf-221 IP65 100 RSH

Temperature Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

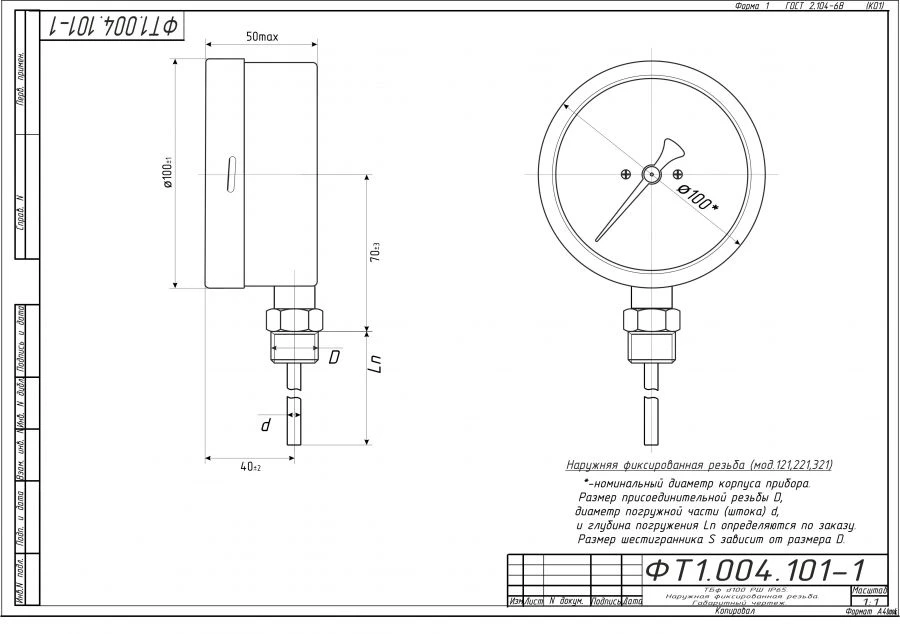

Thermometers bimetallic TBf are designed to measure the temperature of liquid and gaseous media, not aggressive to the material of protective sleeves or thermoballoon (in the absence of a protective sleeve), as well as the temperature of bulk and solids. Thermometers are manufactured with radial (RS) location of the thermoballoon relative to the body. The thermometers can have a zero corrector located on the end of the thermoballoon or on the body. The design of the socket is fixed external thread. Thermometers can be referred to explosion-protected equipment of group II according to GOST 31441.1-2011 (EN 13463-1:2001), GOST 30852.0-2002 (IEC 6079-0:1998) and are intended for use in places (except underground mine workings and their above-ground structures) dangerous by explosive gas media in accordance with the assigned explosion protection marking.

Technical Specifications

Material of protective armature	Stainless steel
Insulation of the working end	airtight
Degree of protection	IP65
Type	TBf
Type of climatic version	UHL1
Unit designation	TBf-221 IP65 100 RSH
Measuring limit, max	600 °C
Measuring limit, min	-60 °C
Accuracy class	2.5
Length of immersion part	1500 mm
Body diameter	100 mm
Stem arrangement	radial
Availability of protective sleeves in the set	Armoured glass
Number of protective sleeves in the set	1 pc
Measuring limit, max	600 °C
Measuring limit, min	-60 °C
Accuracy class	2.5
Length of immersion part	1 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
