Water leakage and temperature sensor DP-2

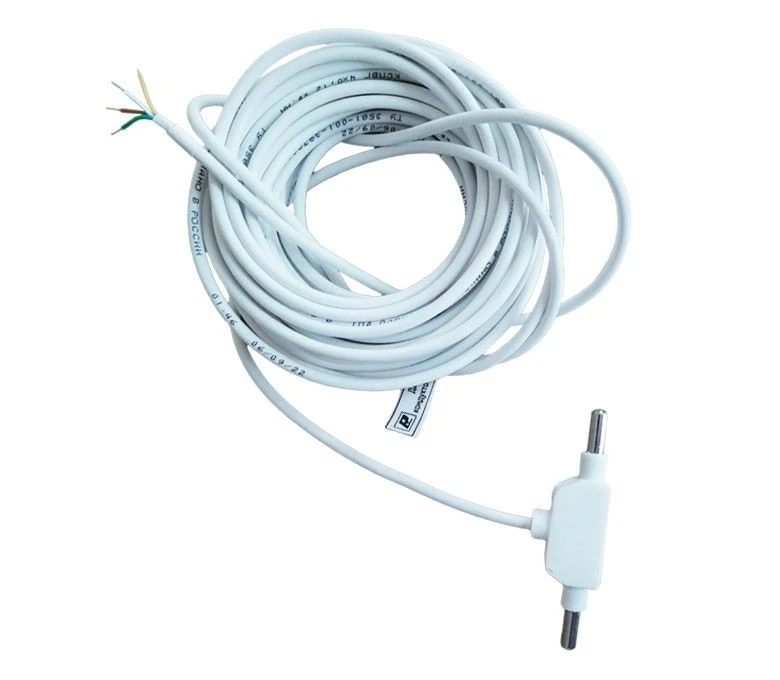

The DP-2 leak and temperature sensor consists of two stainless steel electrodes spaced apart to reduce the probability of false alarms. In one of the electrodes is built in platinum thermal converter with NSX Pt100, Pt500 or Pt1000, connected by 2-wire circuit. The sensor allows to control not only the presence of leakage of electrically conductive liquid, but also the temperature, which is very important in some areas, for example, to control the leakage of hot water in boiler houses and CHPs, in wells of the heating system, etc.
