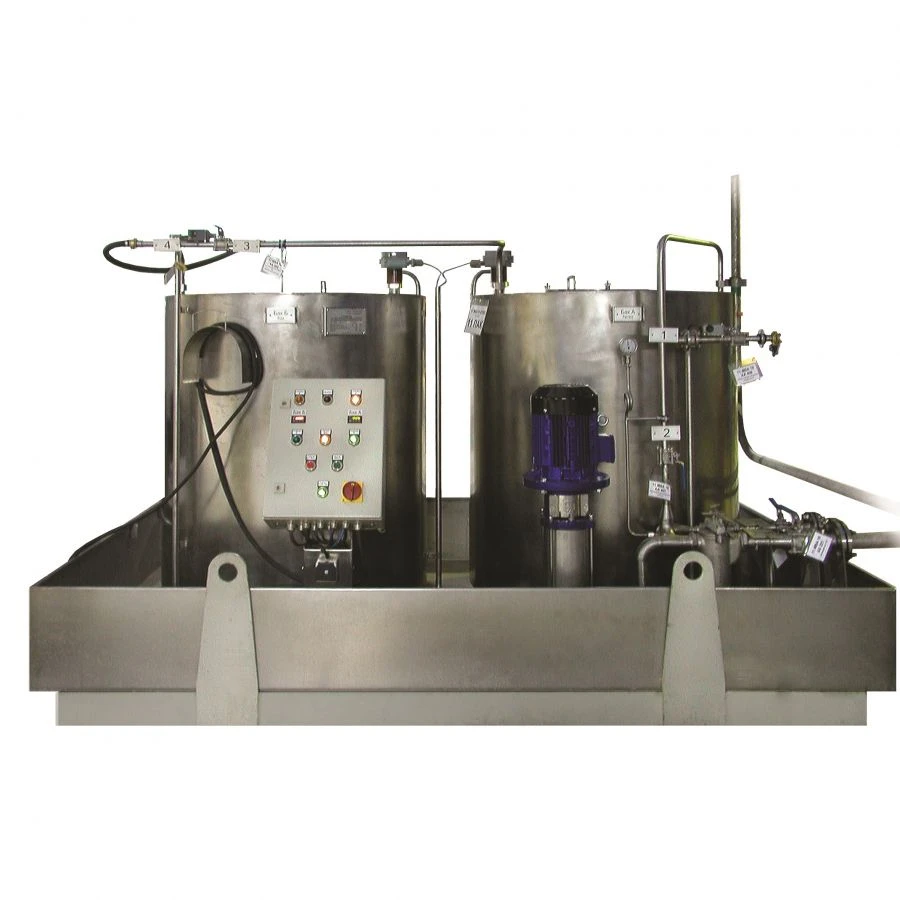

Axial Compressor Washing System for GTU GTE-170 - Enhance Compressor Efficiency
Manufacturer:
TURBOTECT SAINT PETERSBURG OJSC
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Description
The system of washing of axial compressor of gas turbine unit GTE-170 is designed for removal of deposits appearing on parts of flowing part of axial compressor during operation.
The flushing system consists of:
- a set of nozzles (nozzles, supply hoses, manifolds, fasteners) designed for flushing the flow part of the axial compressor on cold cranking (CC);
- set of nozzles (nozzles, supply hoses, manifolds, fasteners), designed for flushing the flow part of the axial compressor on the move;
- device TPM01 (or its modifications) for preparation and supply of washing solution.
The device is connected to sets of nozzles for flushing on the move and on the compressor.
The flushing system consists of:
- a set of nozzles (nozzles, supply hoses, manifolds, fasteners) designed for flushing the flow part of the axial compressor on cold cranking (CC);
- set of nozzles (nozzles, supply hoses, manifolds, fasteners), designed for flushing the flow part of the axial compressor on the move;
- device TPM01 (or its modifications) for preparation and supply of washing solution.
The device is connected to sets of nozzles for flushing on the move and on the compressor.
Specifications
Weight, not more
1000 kg
Length, max.
2700 mm
Width, no more
1700 mm
Height, max.
1900 mm
Number of tanks
2 pcs
Volume of each tank
1250 l
Pump capacity, not more than
150 l
Required voltage
380 V
Mains current frequency
SBVVBG
Power consumption, max.
6 kW
Number of nozzles (RPM)
44 pcs
Capacity of one nozzle (stroke), not less than
0.6 l
Working pressure (COP), not less than
10
Number of nozzles (KP)
B1/B8 2100/900 MHz pcs
Capacity of one nozzle (CW), not less, l/min
14.6 l
Working pressure (CP), not less than
5.5
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
