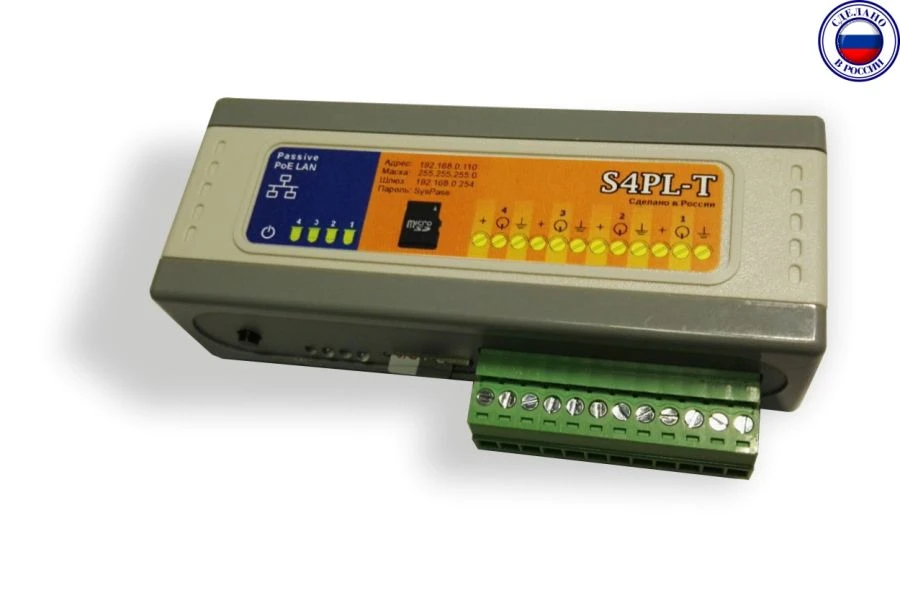

Autonomous audio recorder OSA S4PL-T
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Autonomous audio recorder OSA S4PL-T (for transport security) is used for autonomous, without operator's participation audio recording from microphones, intercoms and telephone lines. Recording is made without compression in PCM 16 Bit format on a removable micro-SD 10 class memory card up to 512 GB with subsequent archiving on an FTP server.Provides protection of audio data from interception and copying by encrypting records with AES key up to 56 Bit. Allows online audio broadcasting via RTSP stream on a media player, such as VLC.Audio recorder control is carried out via local network, to which it is connected via RJ45 network connector.Microphones, intercoms and line outputs from radios are connected to the terminal block. Audio recorder provides power to 2 and 3-wire microphones, with a current consumption of no more than 15 mA.The ability to select one of the following recording modes: constant, by acoustic start, by schedule, from the control board PU-4.
Technical Specifications
| Acoustic range | 10 m |
|---|---|
| Number of channels | 4 pc |
| Type of sound source | Microphone, telephone, radio station, intercoms Client-Cashier, signal generators. |
| Connecting an audio source | Screw block |
| Network interface | Ethernet 10/100Mbps, RJ-45 connector |
| Device power supply | Active PoE IEEE 802.3af and Passive RoE, 48 - 60 V |
| Power consumption | 1.5 W |
| Type of enclosure | Plastic |
| Execution | Tabletop |
| Operating temperature range | 0...70 °C |
| Place of storage of records | Memory card, FTP server |
| Memory card type | SD HC and XC standards, Class 10 |
| Supported memory card capacity | 16...512 |
| Hot swap memory card | Allowed without loss of information |
| Upload to FTP | Scheduled, at the end of file recording |
| Connecting to the device | Via Ethernet or Internet (via white IP address) |
| Protocol used | RTSP, TCP and UDP |
| Accessing the web interface of the device | HTTP Protocol |
| Differentiation of access rights | User - limited rights. |
| Name of the software package to be used | R-Monitor (under Windows 7, 8, 10) |
| Interface | Russian-speaking |
| Recording Modes | Constant, by schedule, by acoustic start, by signal from control board PU-4 |
| Remote monitoring | Possible online via network and Internet |
| Recording AGC adjustment range/step | 0...45 |
| Recording AGC time constant | 0.1...6 |
| An algorithm for compressing audio information: | PCM uncompressed, 16 Bit/sec. |
| Dynamic range of the recording channel | 96 |
| Non-uniformity of the amplitude-frequency response | 1.6...1.8 |
| Nonlinear distortion factor | 0.8...0.95 % |
| Signal-to-noise ratio | 80 |
| Sampling frequency | 16 |
| Operating frequency range | 100...7200 |
| Audio data protection | Stream encryption, AES key up to 56 bits. |
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
