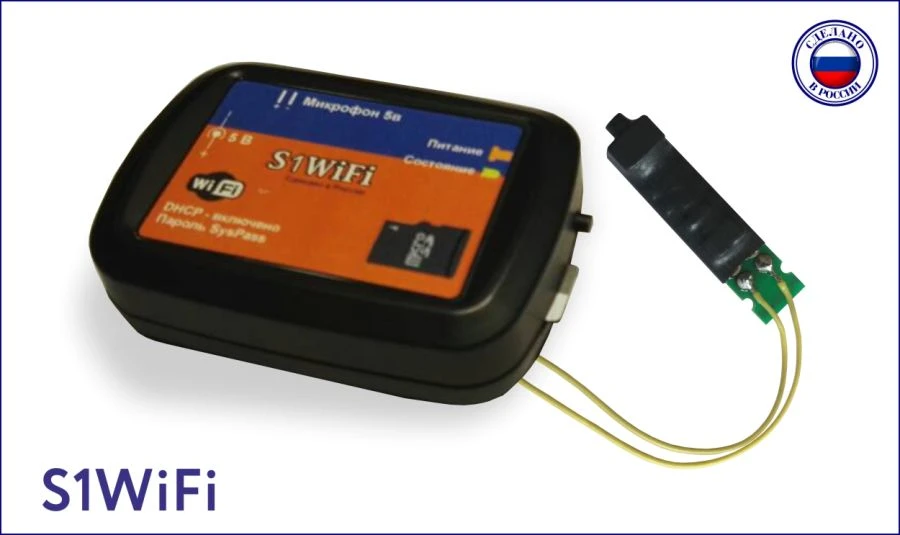

Autonomous Audio Recorder OSA S1WiFi with Microphone MP-50U

Autonomous Audio Recorder OSA S1WiFi with Microphone MP-50U

Brand: OSA
$90 - $300 USD
MOQ: 20 pieces

Key Features

Acoustic range: 10 m
Remote monitoring: Possible online via network and Internet
Recording Modes: Constant, scheduled, acousto-powered
Operating frequency range: 100...7200 kg

More from OSA

OSA P1LN IP Microphone for Audio Monitoring

OSA P1LN IP Microphone for Audio Monitoring

$90-$300
Bidirectional IP Microphone OSA P1DL

Bidirectional IP Microphone OSA P1DL

$150-$480
Autonomous Audio Recorder OSA S4PL-L

Autonomous Audio Recorder OSA S4PL-L

$150-$540
Autonomous Audio Recorder OSA S1PL for Passenger-Cashier System

Autonomous Audio Recorder OSA S1PL for Passenger-Cashier System

$90-$360
OSA S4PL-T Autonomous Audio Recorder

OSA S4PL-T Autonomous Audio Recorder

$150-$540
Digital Audio IP Transmitter OSA P4LN

Digital Audio IP Transmitter OSA P4LN

$90-$300
Autonomous Audio Recorder OSA A1 without Network Interface

Autonomous Audio Recorder OSA A1 without Network Interface

$15-$60

Description

Autonomous audio recorder OSA S1WiFi is used for autonomous, without the participation of the operator, audio recording from a two-wire microphone MP-50U with a highly sensitive head Knowles. It does not support recording from telephone lines.Recording is carried out on a removable memory card micro-SD 10 class, up to 512 GB.

Recording files can be automatically archived to an FTP server depending on the settings.Audio recorder control is carried out:1. via WiFi wireless channel from the web interface or software R-Monitor2.

via Bluetooth channel from an application on a mobile phone.Audio recorder comes as a ready-made boxed solution complete with power supply, microphone MP-50U and memory card for 32GB. This model can be used as a dictaphone, with remote switching on and off the record via Bluetooth channel from a mobile phone.Comes with a free package of software Registrar: R-Monitor, allowing you to build a distributed system of audio monitoring.

Specifications

Acoustic range
10 m
Remote monitoring
Possible online via network and Internet
Recording Modes
Constant, scheduled, acousto-powered
Operating frequency range
100...7200 kg
Sampling frequency
16 t
Signal-to-noise ratio
80
Nonlinear distortion factor
0.8...0.95 set
Non-uniformity of the amplitude-frequency response
1.6...1.8
Dynamic range of the recording channel
96
An algorithm for compressing audio information:
G.726 64 kBit/s.
Recording AGC time constant
0.1...6
Recording AGC adjustment range/step
0...45
Interface
Russian-speaking
Name of the software package to be used
R-Monitor (under Windows 7, 8, 10)
Differentiation of access rights
Administrator - full rights.
WiFI signal antenna / gain
Built-in / 3dB
Protocol used
TCP, HTTP
Connecting to the device
Over WiFi
Upload to FTP
Scheduled, at the end of file recording
Hot swap memory card
Allowed without loss of information
Supported memory card capacity
16...512
Memory card type
SD HC and XC standards, Class 10
Place of storage of records
Memory card, FTP server
Operating temperature range
0...70 million m³
Execution
Tabletop
Type of enclosure
Plastic
Current consumption
In sleep mode up to 270µA; in recording mode up to 20mA; with WiFi enabled 100-115mA.
Device power supply
9...15 thousand m³
Network interface
WiFi, standard 802.11 b/g/n
Connecting an audio source
Screw block
Type of sound source
Microphone
Number of channels
1 µGy
