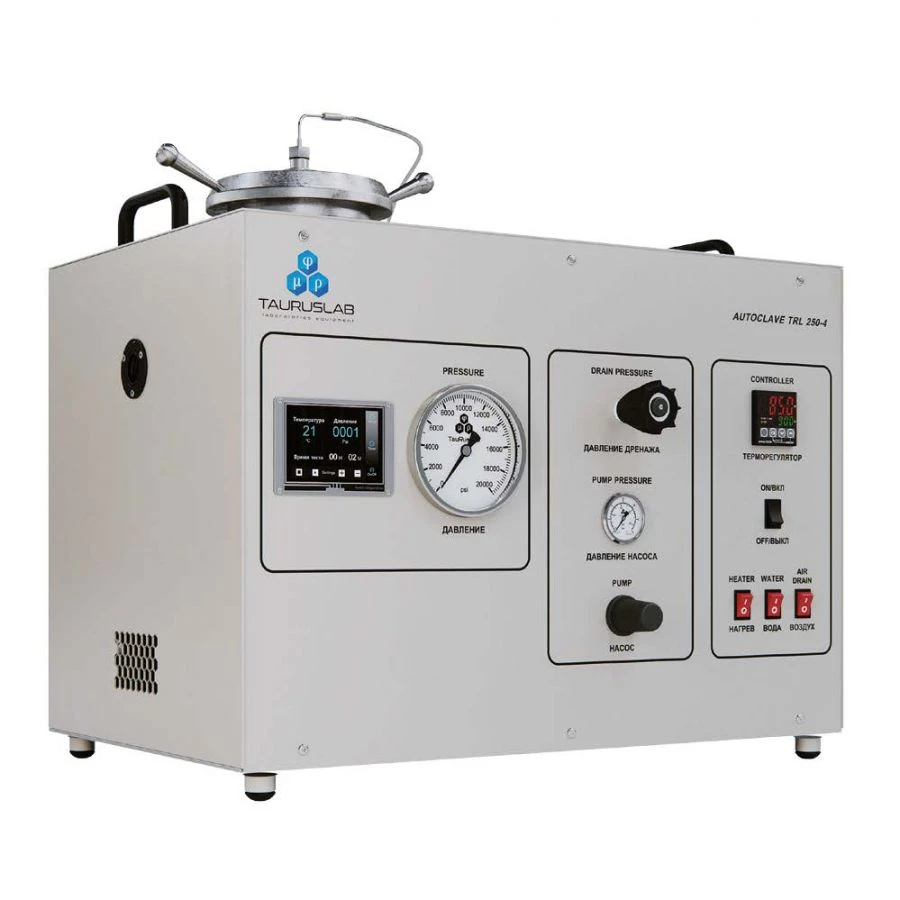

Autoclave for Simulating Well Conditions TRL250-4 for Cement Sample Formation

Thermal Processing Units

Manufacturer: TAURUSLAB LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

Device for simulation of borehole conditions and holding in the chamber of 4 cubic forms filled with cement slurry to form solidified cubic specimens and the possibility of subsequent testing for compressive strength, which in accordance with the requirements of standards API 10 A/10B-2 and ISO 10426 is carried out after their holding in the autoclave in special cubic forms for a certain amount of time at a given pressure and temperature. The pressure in the chamber is created by water using a high-pressure pump with pneumatic drive. Application of autoclave: exposure under pressure and temperature of cement cubes samples, cylinders to determine the physical and chemical properties of cement; Compression of microspheres under pressure and temperature; Thermostating of cement, drilling mud under pressure and temperature; Determination of the effect of pressure and temperature on solutions under prolonged or short-term exposure.

Specifications

Maximum temperature

250 °C

Operating temperature

up to 200 °C

Working pressure

0...62 MPa

Maximum pressure

69 MPa

Heater power

3000 W

Chamber capacity (51*51 mm cube)

4 pcs

Cooling type

water

Nutrition

220 V

Compressor pressure for pump operation

0.87 MPa MPa

Maximum pump fluid flow rate

0.3 l/min

Automatic electrical protection module

(UZO) VD1-63

Temperature maintenance error

±1.0 with temperature sensor °C

Temperature stability

±0.5 with temperature sensor °C

Dimensions

60 - 48 - 64 (v-g-sh) cm

Weight

73 kg

Completeness

- Autoclave; - Cubic moulds - 4 pcs; - Suspension for placing cubic moulds; - Electric cable with power supply unit; - Set of hoses for connection; - Set of keys for removing the letter **; - Operating manual; - Test report (pe

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
