Available for Import

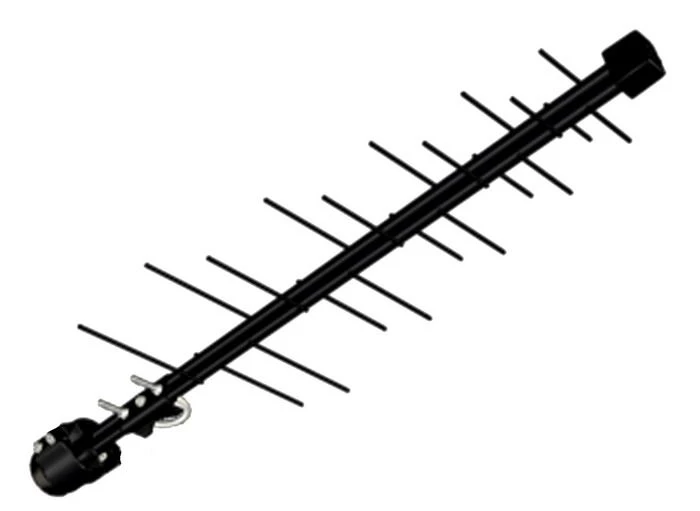

Antenna of decimetre range (UHF) logoperiodic DELTA H111A.04F.5V
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed to receive signals of terrestrial digital and analogue television broadcasting with horizontal polarisation on television (TV) receivers in the range of decimetre waves (21-60 TV channels).
The antenna is equipped with a built-in amplifier, which provides compensation for signal attenuation in the cable reduction and improve the quality of reception of weak signals.
Designed for operation in the temperature range from minus 40 to plus 50°C and the limit value of relative humidity of 100% at 25°C.
The +5V supply voltage is supplied via the antenna reduction cable from the source built into the DVB-T2 digital set-top box. The current consumption does not exceed 35 mA.
The antenna is equipped with a built-in amplifier, which provides compensation for signal attenuation in the cable reduction and improve the quality of reception of weak signals.
Designed for operation in the temperature range from minus 40 to plus 50°C and the limit value of relative humidity of 100% at 25°C.
The +5V supply voltage is supplied via the antenna reduction cable from the source built into the DVB-T2 digital set-top box. The current consumption does not exceed 35 mA.
Specifications
Type by orientation
Directed
View
television
Type
decimeter range
Internal antenna type
outdoor
Reinforcement type
Active
Type by received frequency range
decimeter
Maximum value of the operating radio frequency range
790
Input impedance
75 ohm
Received signals
470-790
Gain factor
26
Maximum operating temperature
SBVVBG °C
Minimum operating temperature
-50 °C
Maximum wind load
15
Standing wave coefficient (VSWR)
75
Connector
F
Equipment
Antenna, mounting kit
Weight
1 kg
Operating wind speed
2
Polarization
Horizontal
Mark
Delta
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
