Aksai-M airfield survey radar station

Aksai-M radar airfield survey station
X-band, 3 cm.

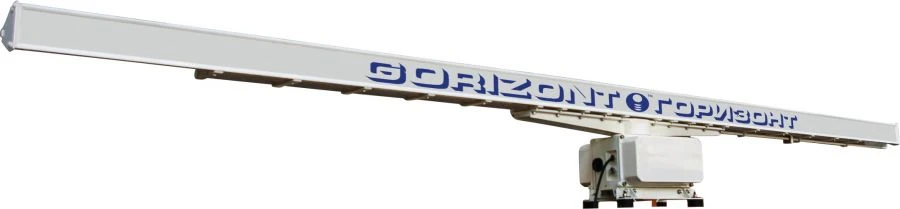

21 ft antenna
Rotation drive 60 rpm.
transmitter power 10 kV
Resolution 0.43 degrees
Range resolution of 15 metres or less
Provides:
Effective means of interference protection against hydrometeors and unintentional interference of the same type of radars.
Operating detection ranges - from 50 to 5000 m.
Resolution in azimuth and range at a distance on a scale of 2 km:. not worse than 15 m.
Detection probability - not worse than 0.9.
RLI update period - not more than 1 s (60 rpm).
Angle of view - 360° (with the possibility of sectoral view within specified limits to exclude unwanted reflections from local objects).
Automatic and manual input to escort targets in a given area of responsibility.
