Complex "SAPFIR" version LBIU.461411.192
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Available Models
Description
The complex "SAPFIR" is designed for:
- ensuring the safety of local objects (private territories) from potentially dangerous use of small-sized unmanned aerial vehicles (drones) of "micro" and "mini" civilian classes, including "artisanal" production (hereinafter referred to as "UAVs"), in urban environment, in close proximity to industrial facilities and out-of-town and industrial buildings;
- solving the tasks of detection and neutralisation of potentially dangerous UAVs;
- equipping of security structures of industrial, cultural, mass, sports various forms of ownership and private objects.

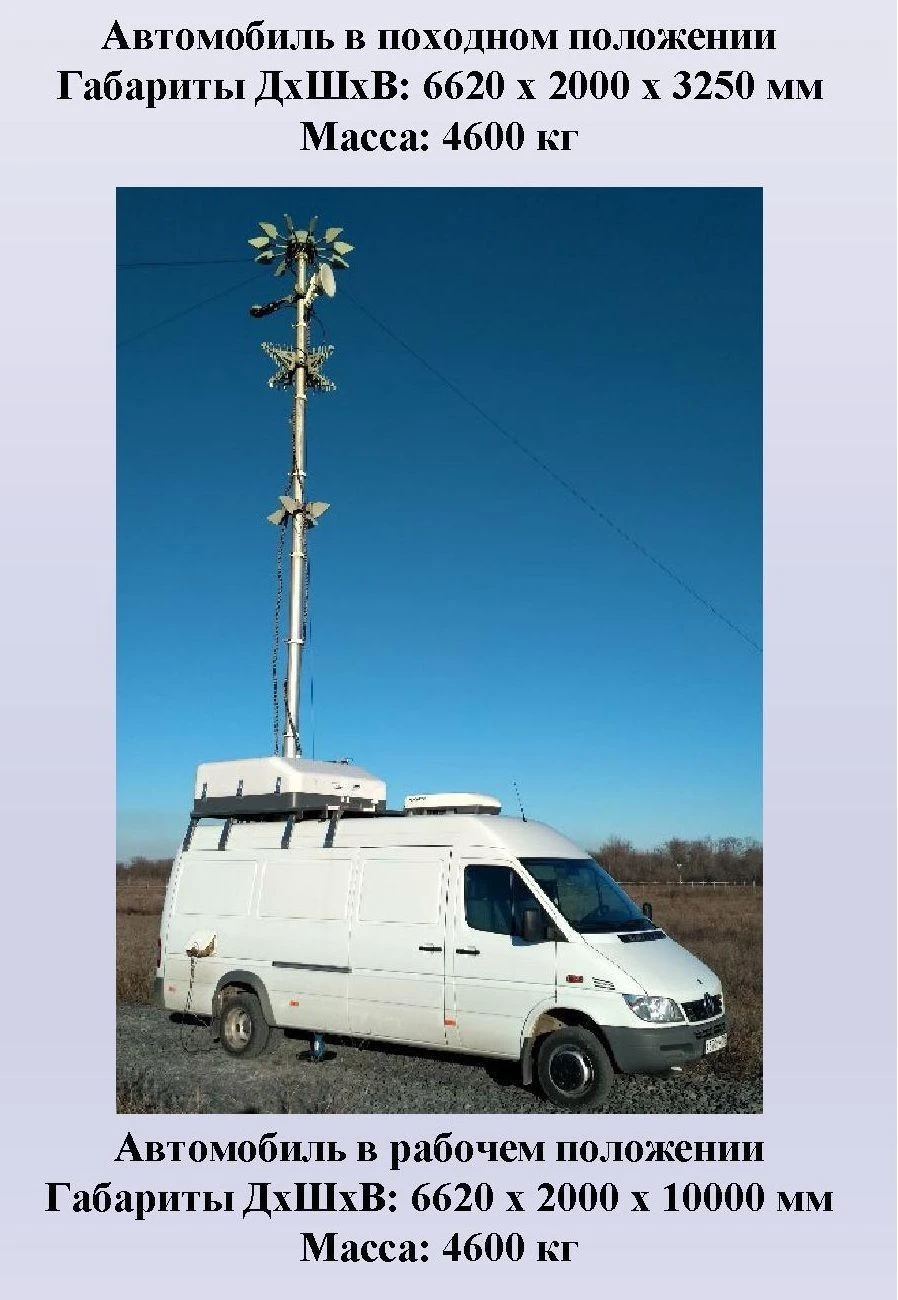

The complex "SAPFIR" represents the equipment placed on one vehicle and functioning in the range of operating frequencies from 0.3 to 5.95 GHz.
- ensuring the safety of local objects (private territories) from potentially dangerous use of small-sized unmanned aerial vehicles (drones) of "micro" and "mini" civilian classes, including "artisanal" production (hereinafter referred to as "UAVs"), in urban environment, in close proximity to industrial facilities and out-of-town and industrial buildings;
- solving the tasks of detection and neutralisation of potentially dangerous UAVs;
- equipping of security structures of industrial, cultural, mass, sports various forms of ownership and private objects.
The complex "SAPFIR" represents the equipment placed on one vehicle and functioning in the range of operating frequencies from 0.3 to 5.95 GHz.
Specifications
Maximum AC mains power consumption
4 kW
Satellite navigation channel suppression range
6
Formation and emission of suppression signals of onboard receivers of the most common satellite radionavigation systems
GPS/Navistar, GLONASS, Beidou and Galileo
Formation and emission of countermeasure signals to UAV control channels
Formation and emission of signals to counteract UAV control channels on 3 (three) fixed channels with different bandwidths (up to 200 MHz) in the entire frequency range from 0.3 to 5.95 GHz.
Radio reconnaissance and suppression frequency range
300...5950
Sector of operation in the azimuth plane
360
Working sector in the angular plane
60
Operating temperature range for the equipment
30...50 °C
Operating temperature range for APM
5...50 °C
