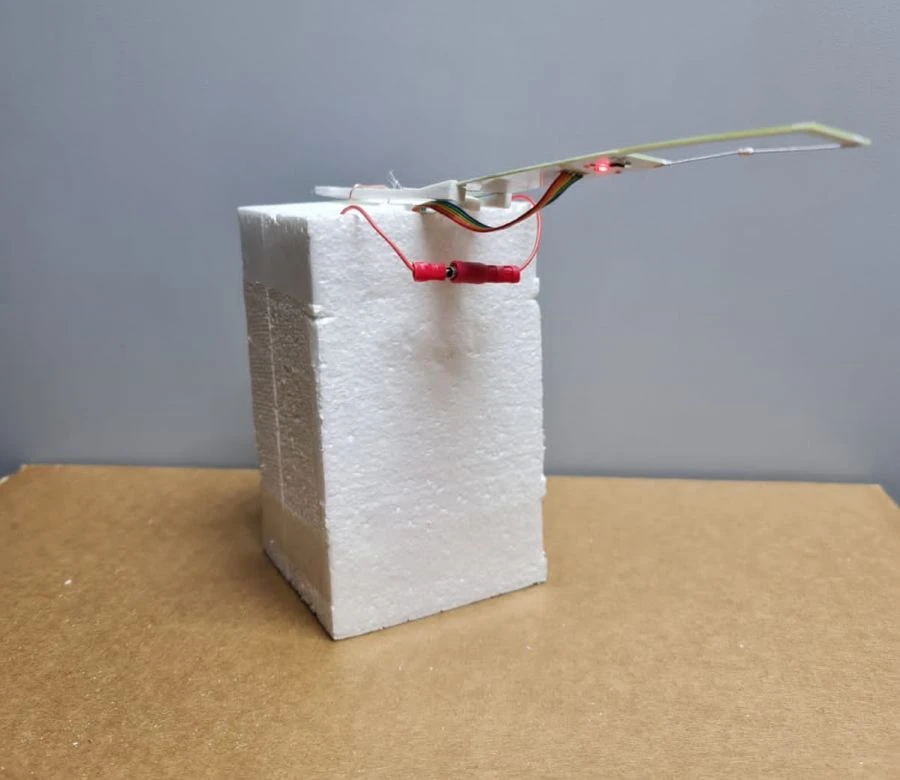

Airborne complex sounding radiosonde AK2-02m

Weather and Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

Airborne integrated sounding radiosonde AK2 Airborne integrated sounding radiosonde AK2-02mF

Description

SI is designed to measure various atmospheric parameters, convert measurement information into a telemetric radio signal and transmit it for further processing to a ground tracking station

Specifications

Ambient air temperature measurement range -90...50 °C

Limits of permissible absolute error of temperature measurements ±0.6? or ±1.0?

Measuring range of ambient relative humidity 0...100 %

Tolerance limits of absolute error of relative humidity measurements ±5% OF VOV

DC supply voltage 4.5...6.7 V

Consumption current max. 350 mA

Overall dimensions (L×W×H) not more than 140×95×95 mm

Weight max. 0.27 kg

Work resource at least 50 h

Probability of failure-free operation in 2 hours Not less than 0.97

Duration of continuous operation from the moment the battery is connected at least 4 h

Shelf life without battery at least 4 years

Time to prepare the radiosonde for launch not more than 15 min.

Carrier frequency of radiosonde radiation 1680±8 MHz or 1680±10 MHz or 1782±8 MHz

Super pulse repetition rate 600±25 kHz or 800±25 kHz

Deviation of the superimpulse repetition rate 12-18 kHz or 15.4±0.4 kHz

Radiation energy flux density of the transceiver at a distance of 2.00±0.05 m in the direction at an angle of 55º from the axis at least 1.5?10¯³ W/m²

Sensitivity of the transceiver to request signals max -60 dB

Measuring range of output pulse duration in the reference channel 200 to 350 ?s

Measurement range for measuring the duration of output pulses in weather information channels from 435 to 756 mks

Range of variation of the pulse repetition period produced by the measuring transducer in the reference channel 2251708:Range of 1449 to 1785 ?s

Range of pulse repetition period variation produced by the measuring transducer in the temperature channel 1562 to 58821 ?s

Variation range of the pulse repetition period produced by the measuring transducer in the moisture channel from 1562 to 2564 ?s

Operating conditions (ambient air temperature) -90...50 °C

Operating conditions (atmospheric pressure) 2 to 1100 hPa

Operating conditions (relative humidity) 0...100 %

Working conditions of operation (exposure to solar radiation and other natural radiations) Armoured glass

Working conditions of operation (presence of atmospheric precipitation) Armoured glass

Operating conditions (air blowing when the radiosonde rises in the atmosphere) Armoured glass

Note the temperature sensor is coated with special anti-radiation coating - white enamel VL 548 (TU 6-10-1658-78) or an analog with optical properties

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
