Wind speed and direction sensor DSNV ISAT.416136.005

Weather and Measurement Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

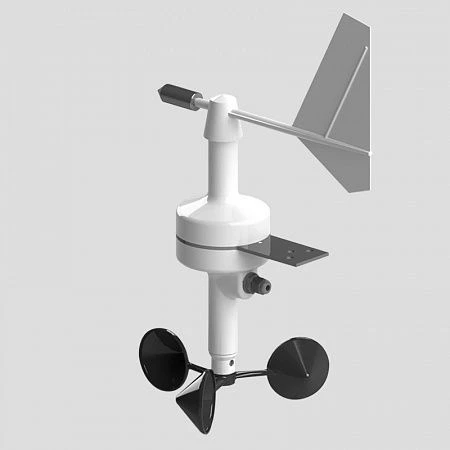

The wind speed and direction sensor is designed for measuring the speed and direction of air flow in the surface layers of the atmosphere, data processing and transmission to the consumer. It is supplied with a 10 m (20 m, 40 m - optional) fixed cable. Data transmission is carried out via RS 485 interface.

Specifications

Weight, not more 3.4 kg

Operating range of relative humidity 0...98 %

Operating range of air temperature -50...60 °C

Degree of protection IP66

Power consumption, max. 30 W

DC supply voltage 9.5...36 V

Limits of permissible absolute error of airflow direction measurements -2...2

Measuring range of air flow direction 0...360

Limits of permissible absolute error of air velocity measurements, m/s -(0.04+0.04V)-(0.04+0.04V)

Measurement range of air velocity 0.4...75
