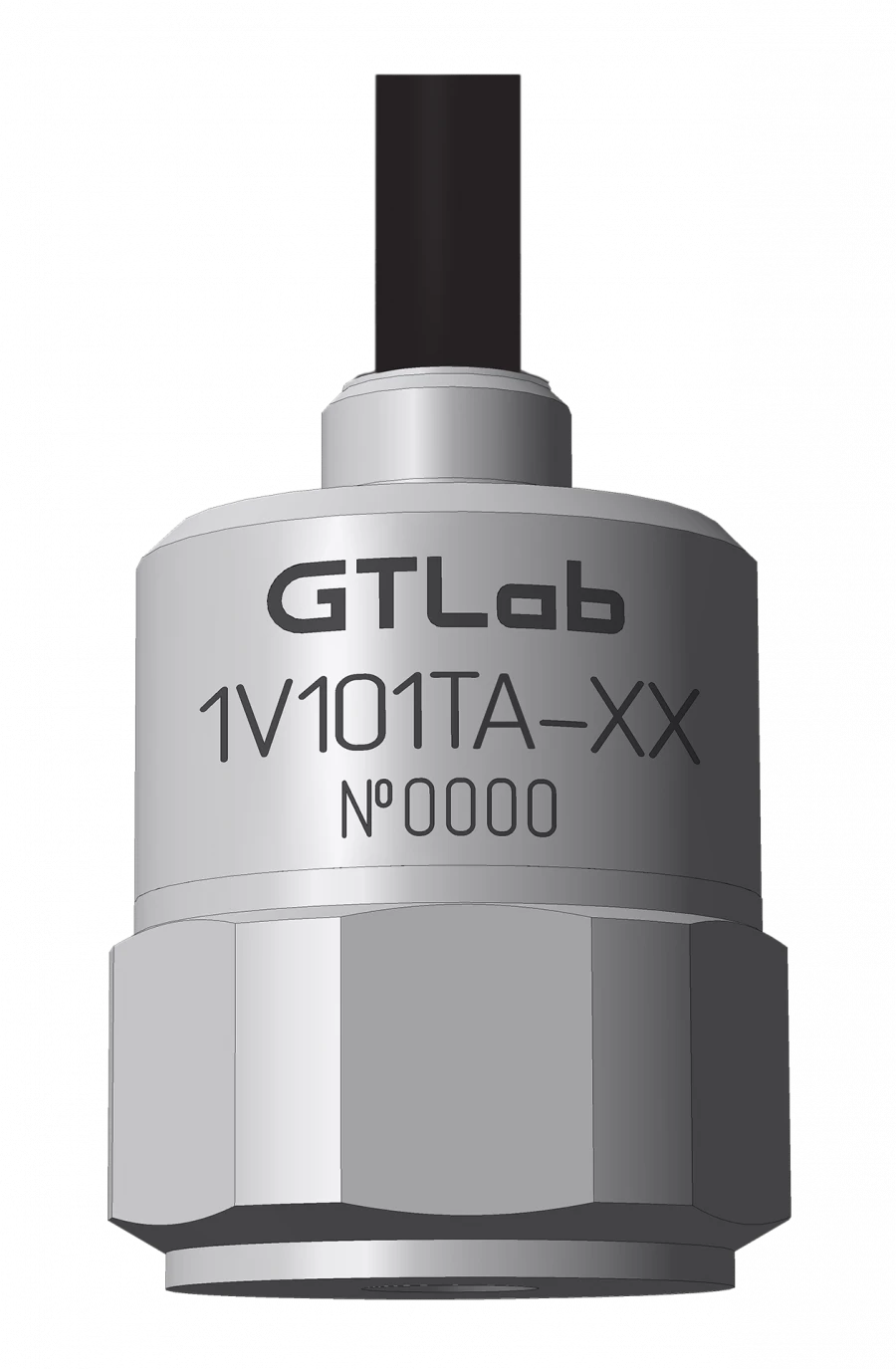

Accelerometer 1V101TA-500

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Available Models

???????????? 1V101TA-100

Description

Axelerometers with voltage output are electromechanical transducers with increased noise immunity for measurement of vibration and shock accelerations. Acceleration vibration transducers with voltage output for general purpose are designed for measuring parameters of vibration processes (in multichannel systems, modal analysis, analysis in industrial sanitation).

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Conversion factor 50 mV/(m-s-2)

Relative transverse conversion ratio < 5 %

Maximum value of the measured acceleration amplitude ± 100 m/s2

Maximum impact (peak value) ± 25,000 m/s2

Operating temperature range -55 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons 0.5 ... 8 000; Hz 1 ... 5 000 Hz; 2 ... 3 000 Hz

Natural frequency in fixed state > 15 kHz

Noise level, RMS (1 Hz ÷ 10 kHz) < 0.0005 m/s2

Output impedance < 100 ohms

Power supply: voltage; current + (18 ... 30) V; 2 ... 20 mA

DC output voltage level 10 ... 13 ?

Housing material stainless steel

Coefficient of influence of ambient temperature ± 0,2%/ °?

Time to establish operating mode 4 ?

Weight (without cable) 42 ?

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
