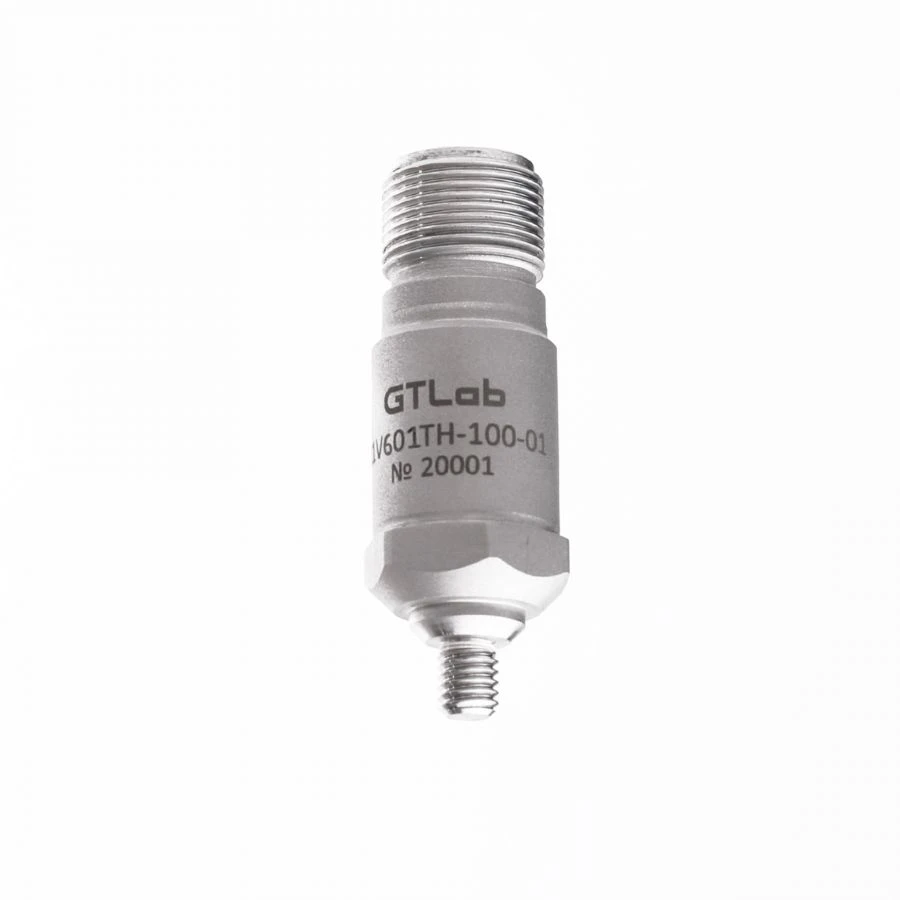

???????????? 1V601TH-100-01

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

The 1V601 shock pulse sensors support dual measurement technology. They are designed for simultaneous measurements of vibration acceleration in the range of operating frequencies and shock acceleration (shock pulses) at the frequency of the setting resonance.

Specifications

Conversion factor (± 10%) 10 mV/(m-s-2)

Relative transverse conversion ratio < 5 %

Maximum value of the measured acceleration amplitude ± 600 m/s2

Shock pulse measurement range -20 ... +75 dB

Operating temperature range -55 ... +125 °?

Operating frequency range: ? frequency response irregularity ± 3 dB ? frequency response irregularity ± 1 dB ? frequency respons 1 ... 10 000 Hz 2 ... 6 000 Hz 4 ... 5 000 Hz

Natural frequency in fixed state 28 kHz

Noise level, RMS (1 Hz ÷ 10 kHz) < 0.002 m/s2

Output impedance < 100 ohms

Power supply: ? voltage ? current + (18 ... 30) V 2 ... 20 mA

DC output voltage level 8 ... 13 ?

Coefficient of influence of ambient temperature ± 0,2 %/ °?

Time to establish operating mode 2 ?

Housing material stainless steel

Explosion protection OExiaIICT4

Degree of protection against external influences IP67

Weight (without cable) 50 ?

Thread size A M6

Fastening torque 4 H-m

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
