Available for Import

Accelerometer 1D201HN

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

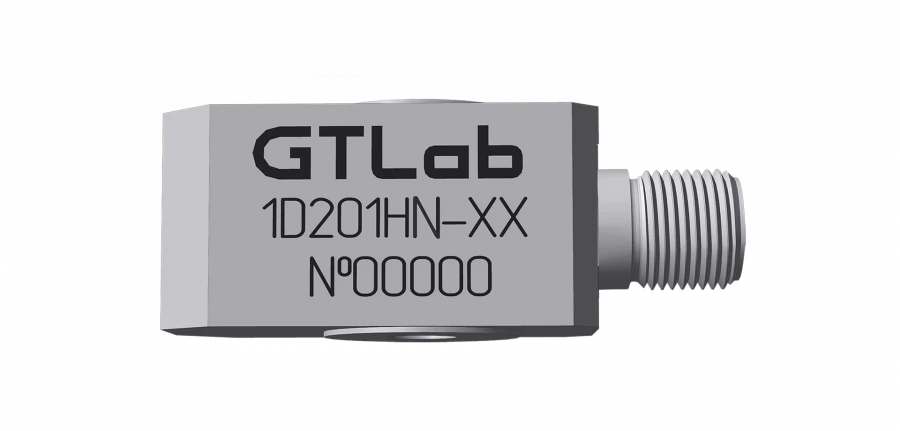

Digital three-component MEMS accelerometers 1D201HN with RS485 output.

Specifications

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Weight 160 ?

Housing material stainless steel

Number of measuring axes 3 (x, y, z)

Consumption current ? 20 mA

Supply voltage ± 10 % + (5 ... 12) ?

Output RS-485, Modbus RTU protocol

Operating temperature range - 40 ... +85°?

Relative transverse conversion ratio < 5%

Maximum impact (peak) ± 1,000 m/s2

Operating frequency range - frequency response unevenness ± 3 dB 2 ... 1 000 Hz | 3 ... 1 000 | Hz 5 ... 1 000 | Hz 10 ... 1 000 Hz (user adjustable)

LF 200,500,1000 Hz (user adjustable)

VHF 2, 3, 5, 10 Hz (user adjustable)

Measured temperature range of the integrated sensor (± 2 °C) - 40 ... +85°?

Detector Swing, Peak, RMS

Measurement mode vibration acceleration, vibration velocity, vibration displacement

Measured amplitude range of vibration accelerations 0 ...100 m/s2 | 0 ...200 m/s2 | 0 ...400 m/s2 (user adjustable)

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
