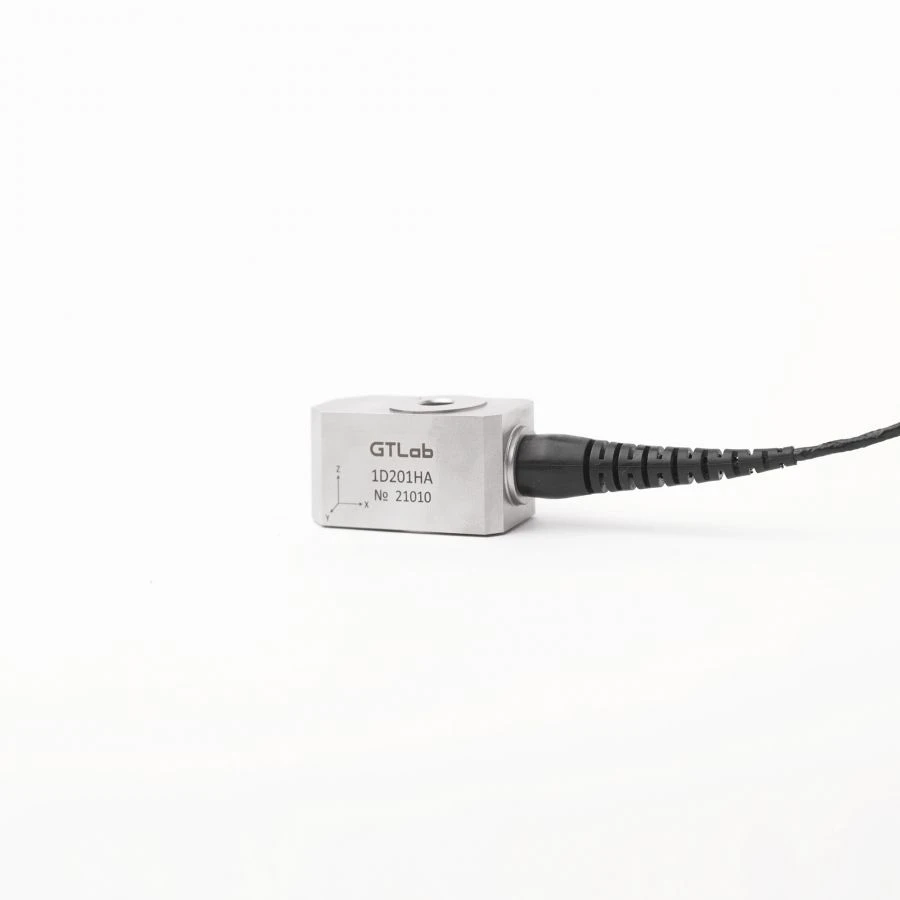

Accelerometer 1D201HA

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Digital three-component MEMS accelerometers 1D201HA with RS485 output. Designed to measure the values of RMS, Peak and Swell values of vibration acceleration, vibration velocity and vibration displacement in the range up to 1kHz. They can connect up to 8 sensors on one bus, control via MODBUS protocol

Technical Specifications

Measured amplitude range of vibration accelerations	0 ...100 m/s2; 0 ...200 m/s2; 0 ...400 m/s2
Measurement mode	vibration acceleration, vibration velocity, vibration displacement
Detector	Swing, Peak, RMS
Measured temperature range of the integrated sensor (± 2 °C)	- 40 ... +85°?
VHF	2, 3, 5, 10 Hz (user adjustable)
LF	200,500,1000 Hz (user adjustable)
Operating frequency range - frequency response unevenness ± 3 dB	2 ...1,000 Hz; 3 ...1,000 Hz; 5 ...1,000 Hz; 10 ...1,000 Hz (user adjustable)
Maximum impact (peak)	± 1,000 m/s2
Relative transverse conversion ratio	< 5%
Operating temperature range	- 40 ... +85°?
Output	RS-485, Modbus RTU protocol
Supply voltage ± 10 %	+ (5 ... 12) ?
Consumption current	? 20 mA
Number of measuring axes	3 (x, y, z)
Housing material	stainless steel
Weight	160 ?
Type of product according to PP RF 616	Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
