Available for Import

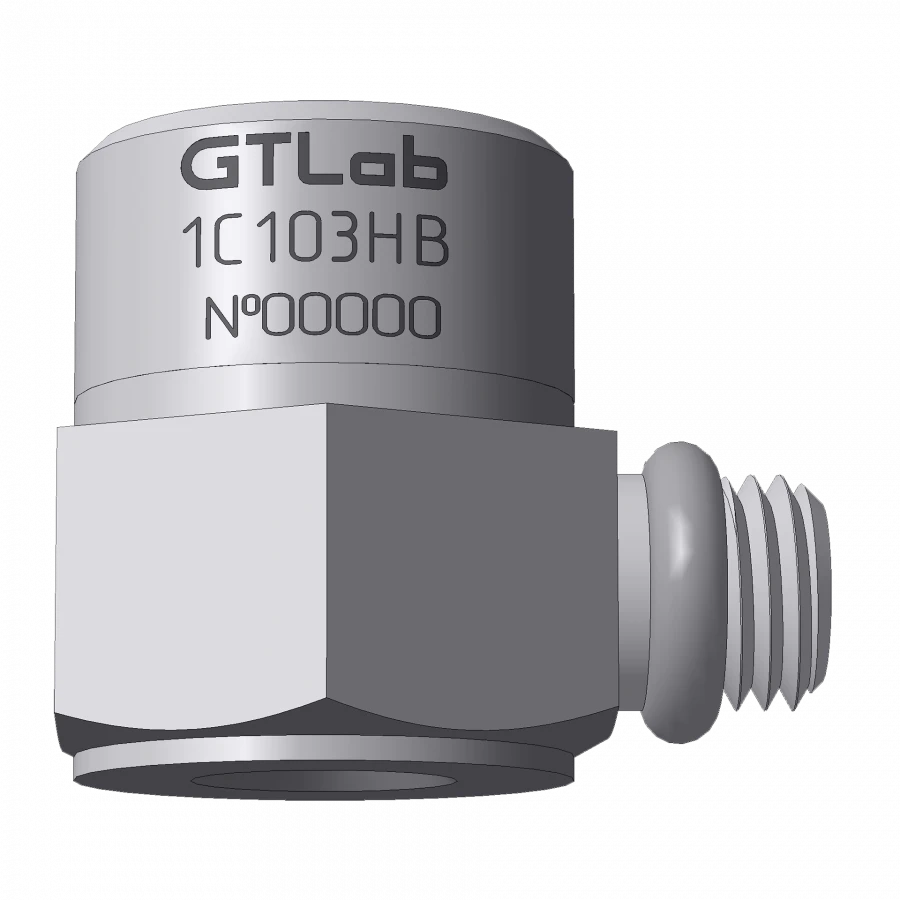

Accelerometer C103HB-01
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
General purpose accelerometers with charge output are designed for extreme conditions of application: high temperature and shock accelerations of medium or high intensity in a wide frequency range
Specifications
Conversion factor (± 20%)
1 pCal/(m-s-2)
Relative transverse conversion ratio
< 5 %
Maximum value of the measured acceleration amplitude
± 100,000 m/s2
Maximum impact (peak value)
± 150,000 m/s2
Operating temperature range
-60 ... +250 °?
Operating frequency range (frequency response unevenness ± 1 dB)
0.5 ... 16 000 Hz
Natural frequency in fixed state
> 50 kHz
Electrical capacity
700 ... 1000 pF
Insulation resistance under normal conditions
> 10,000 megohms
Housing material
Titanium alloy
Weight (without cable)
7,6 ?
Type of product according to PP RF 616
Instruments and other instruments for measurement, control and testing
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
