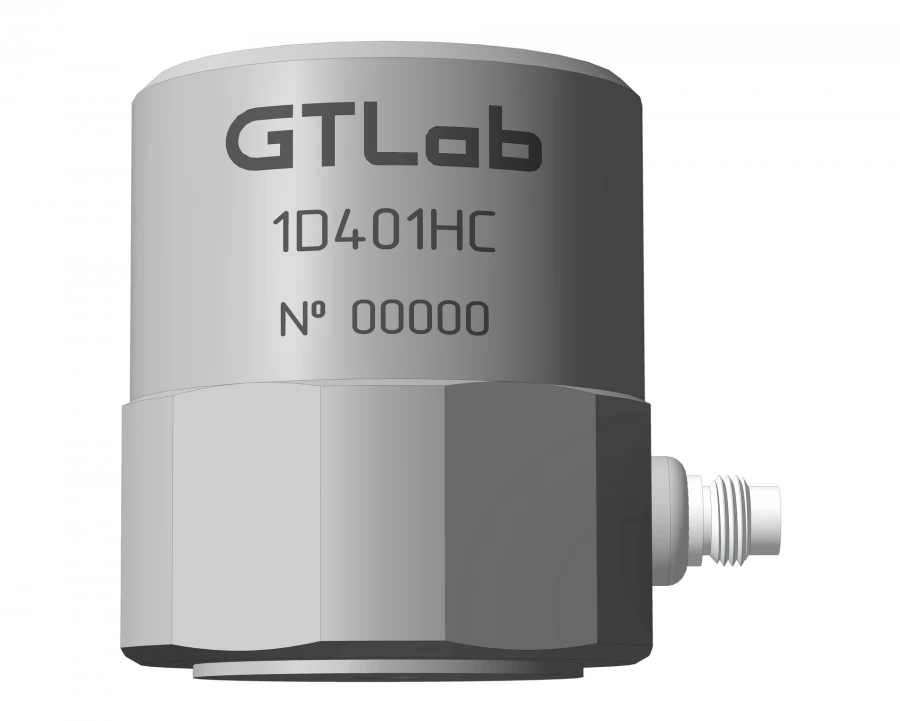

Accelerometer 1D401HC

Movement Measurement Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Axelerometers with digital output - vibration transducers with built-in ADC. Designed to measure vibration and shock acceleration, registration, recording and digital post-processing of the signal. Virtual instruments of GTL software: spectroanalyser (octave, third-octave, direct), mutual spectrum, envelope spectrum, oscilloscope, AFFC (amplitude phase-frequency response), modal analysis, octave analysis, AC and DC voltmeters, frequency meter, flexible filters of upper VFD and lower VLF frequencies (up to 50 orders of magnitude), signal recording (time, level). The software is regularly updated. Always use the latest up-to-date version.

Specifications

Conversion factor 10 / 20 / 50 / 100 mV/(m?s2 )

Maximum value of the measured acceleration amplitude 10 / 20 / 50 / 100 m/s2

Maximum impact (peak) ± 1,000 m/s2

Operating frequency range (frequency response non-uniformity ± 3dB) 0,5 ... 5 000 Hz

Operating temperature range -20 ... +70 °?

Output interface USB 2.0 full speed

Number of ADC bits 24 bits

Input signal sampling frequency 48 000 Hz

Time to establish operating mode 10 ?

Power supply voltage + 5 ?

Consumption current < 80 mA

Housing material stainless steel

Connector type C03B

Noise level RMS (1 ... 5 000 Hz) < 0.02 m/s2

Weight 250 ?

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
