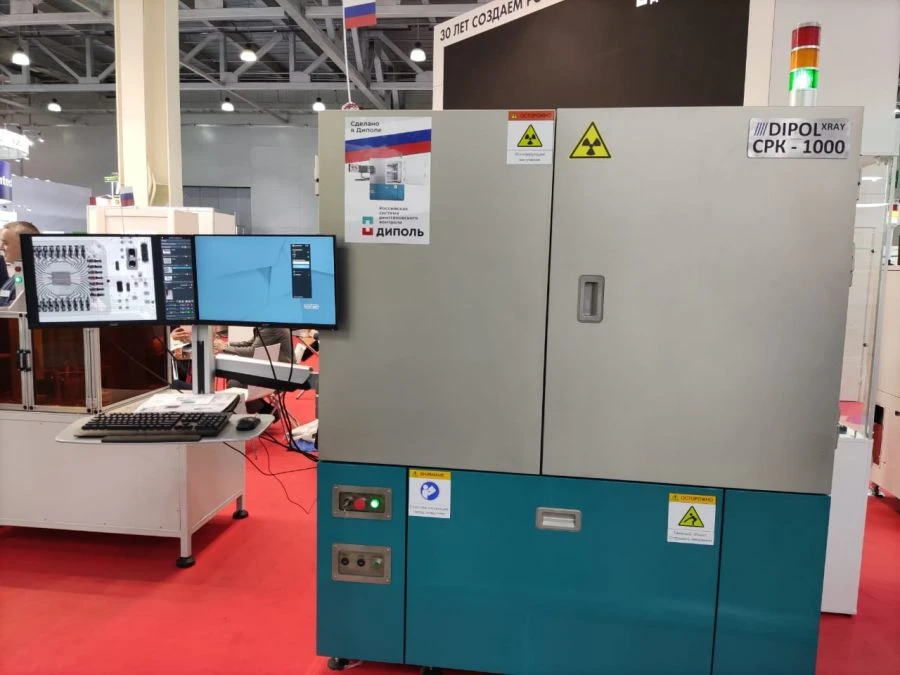

Microfocus X-ray inspection system SRK-1000

Radiation Inspection Devices

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Purpose:
Non-destructive quality control of welded, soldered joints of REA components of product categories:
- BGA-cases and integrated circuits
- semiconductor packages
- shielded devices, encapsulated components, complete modules
- integrated circuits with multi-level chipping
- printed electronics, hidden connections
- bare boards, multilayer boards
- power modules

Design features:
- presence of control and indication organs
- protective earthing
- convenient access to the elements involved in the process of operation
- maximum size of the investigated object - 440x550 mm.
- maximum weight of the investigated object - 5 kg.
- power supply from AC 230 V, 50 Hz.

Advantages:
Domestic products, in-house service and spare parts

Specifications

Scope of application In industry connected with production and use of electronic component base, for non-destructive quality control of welded, soldered joints in order to detect in the process of input and/or output control of counterfeit, defective, faulty and defective prod

Automated functions - navigation map of the object and navigation area; - post-processing of images; - estimation of geometrical dimensions, selection of the area of interest, application of marks and graphic primitives; - description of the investigated object; - processing

Functional modes - single exposures; - dynamic mode with real-time display of the image on the screen; - laminography; - computed tomography (optional).

Geometric enlargement 10...2000

Detector tilt angle 0...70

Reliability - average MTBF is not less than 2500h; - service life of cathode and target should be not less than 200h - software protection from incorrect operator actions is provided.

Safety Conforms to the following safety standards: - radiation: NRB-99/2009 (SP 2.6.1.2523-09); OSPORB-99/2010 (SP 2.6.1.2612-10); SP 2.6.1.3164-14; - electrical: GOST 12.2.091 - 2012 (IEC 61010-1:2001).

Ergonomics - meets ergonomic requirements of GOST 12.2.049; provides protection of fingers, hands, feet from crushing between moving, as well as between moving and stationary parts in accordance with GOST 30324.32.

Production parameters - designed for use in industrial electromagnetic environment (class B according to GOST R 51318.11); meets the requirements of electromagnetic compatibility in accordance with GOST R IEC 61326-1-2014.

Operating parameters - designed for operation in covered and heated rooms at ambient air temperature from 10 to 30 oC, relative humidity from 30 to 60% (non-condensing), atmospheric pressure from 84.0 to 106.7 kPa (from 630 to 800 mmHg) -- connected to the transmitter.

Resistance to external influences - in terms of resistance to external influencing factors corresponds to the requirements of group M1 according to GOST 25467-82 - in terms of resistance to climatic effects corresponds to the group of execution UHL4.2 according to GOST 15150-69.

Environmental friendliness Disposal in a specialised recycling centre for electronic equipment (disposal with household waste is prohibited)

Type of product according to PP RF 616 Instruments and other instruments for measurement, control and testing

Dimensions 2413;2344;1357 mm

Operating voltage 20...160 kV

Input voltage 220 V

Load current 16 A

Output power 2 W

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
