X-ray analysers AR model AR-35

Analytical Instruments

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

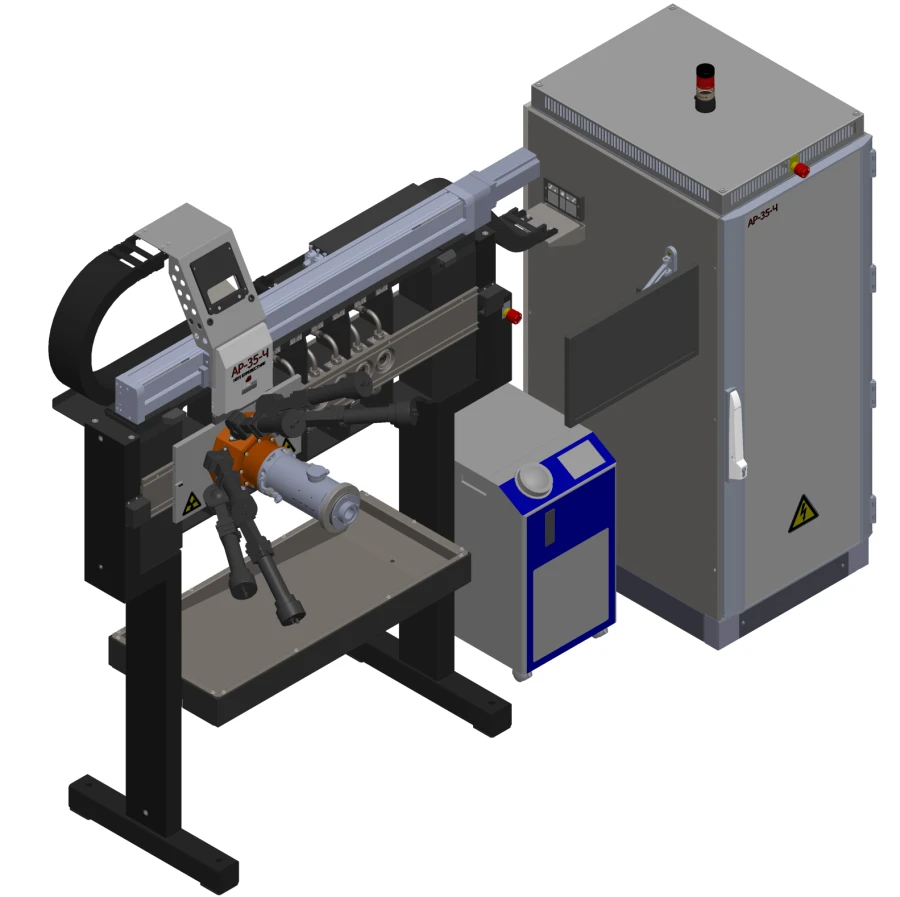

Analyser X-ray AR model AR-35 is a laboratory universal measuring device designed to measure the intensities of analytical lines of X-ray fluorescence of chemical elements included in the pulp, suspensions and solutions, as well as the intensity of scattered radiation of the X-ray tube. The analyser can be used to determine the chemical composition of process media in organisations of non-ferrous and ferrous metallurgy, chemical industry using appropriate analysis techniques.

Technical Specifications

Frequency	SBVVBG
Power supply voltage	230 V
Power consumption	Не более 5000 вольт-ампер
Number of measuring cuvettes	6, 10 or 15 pcs.
Number of spectrometric channels	Либо до 8 спектрометрических каналов, либо до 7 спектрометрических каналов и один ППД
MTBF	Not less than 10000 hrs.
Service life	At least 10 years
Overall dimensions of the spectrometric device DxWxB	2400x915x1960 mm
Dimensions of the Automatic Control Rack DxWxB	600x900x1710 mm
Dimensions of X-ray tube cooling system DxWxB	380x650x660 mm
Weight of the Spectrometric Device	330 kg
Weight Automatic Control Rack	245 kg
Weight of X-ray tube cooling system	55 kg
Measurement of intensities	By means of fixed spectrometric crystal-diffraction channels for elements Ca (20) to U (92)
Number of reference samples	2 pc

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
