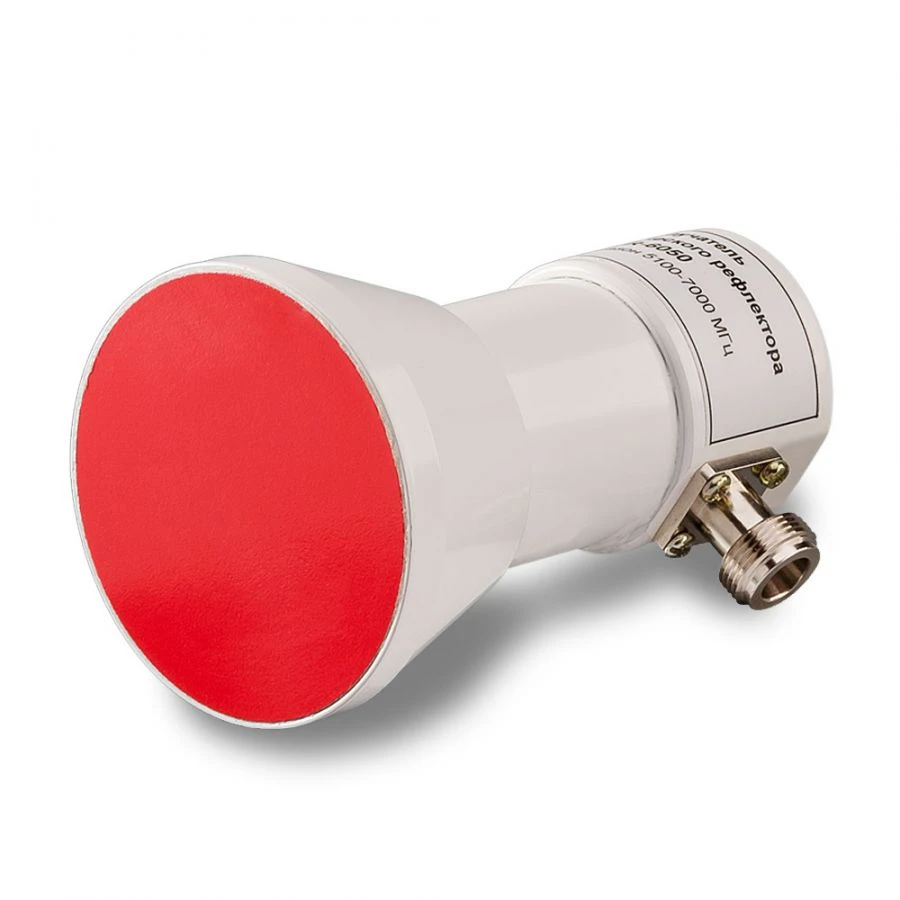

Wi-Fi parabolic reflector irradiator KIR-6050

The KIR-6050 parabolic reflector illuminator is designed to work in standard satellite dishes. It is used for data transmission, for organisation of communication in trunk channels, in receiving and transmitting systems operating in the range of 5850-6725 MHz. The KIR-6050 satellite dish transmitter can be used in computer networks, Wi-Fi networks, signalling systems, radio communication systems, etc.
The antenna system consisting of the irradiator and offset mirror short-focus reflector has the highest possible gain compared to other types of antennas. The gain of an antenna with a dish with a diameter of 1.2 m can reach 36 dB. The use of these antennas allows the construction of backbone data transmission channels at distances of up to 35 kilometres. There is data on the use of this type of antenna amateur radio operators for voice communication at a distance of about 400 km.
