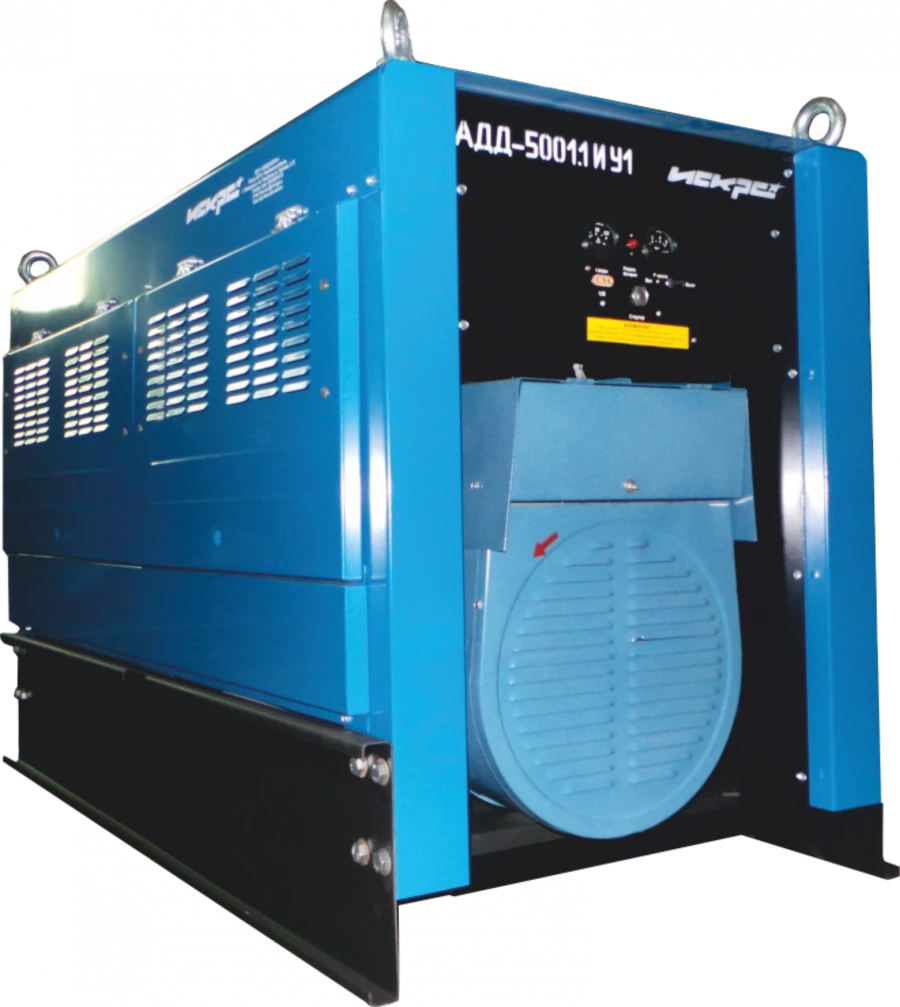

Welding Power Supply Unit ADD-5001.1 I U1 for Manual Arc Welding and Metal Cutting

Electric Soldering & Welding Machines

Manufacturer: UZSNGU "ISKRA" LLC

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Description

The unit is designed to supply one welding station for manual arc welding, cutting and surfacing of metals with direct current. The unit allows welding with electrodes with any type of coating, as the power is supplied from a source of direct current, which is a generator inductor type with rectification of current, efficiency of 70%. It is designed to work outdoors in field conditions. Nominal parameters of the unit refer to its operation at an altitude of not more than 1000m above sea level, ambient air temperature from +40°C to -45°C and relative humidity (monthly average) up to 80% at +15°C. .

Specifications

Rated welding current

500 A

Rated operating voltage

40 V

Welding current control limits

75...530 A

No-load voltage, not more

Flat grinder, Specialised grinder V

Nominal welding cycle time

Load duration, PU

60 %

Engine model

?-242

Motor power

6 kW

Rotational speed

1800

Cooling system

Closed type with forced coolant circulation

Summer fuel

DT-L-40-K2

Winter fuel

DT-Z-minus 35-K2

Hourly fuel consumption of the engine in nominal operation mode, not more than

0.00142

Fuel tank capacities

60 l

Unit weight without accessories

880 kg

Length

1800 mm

Width

920 mm

Height

1150 mm

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
