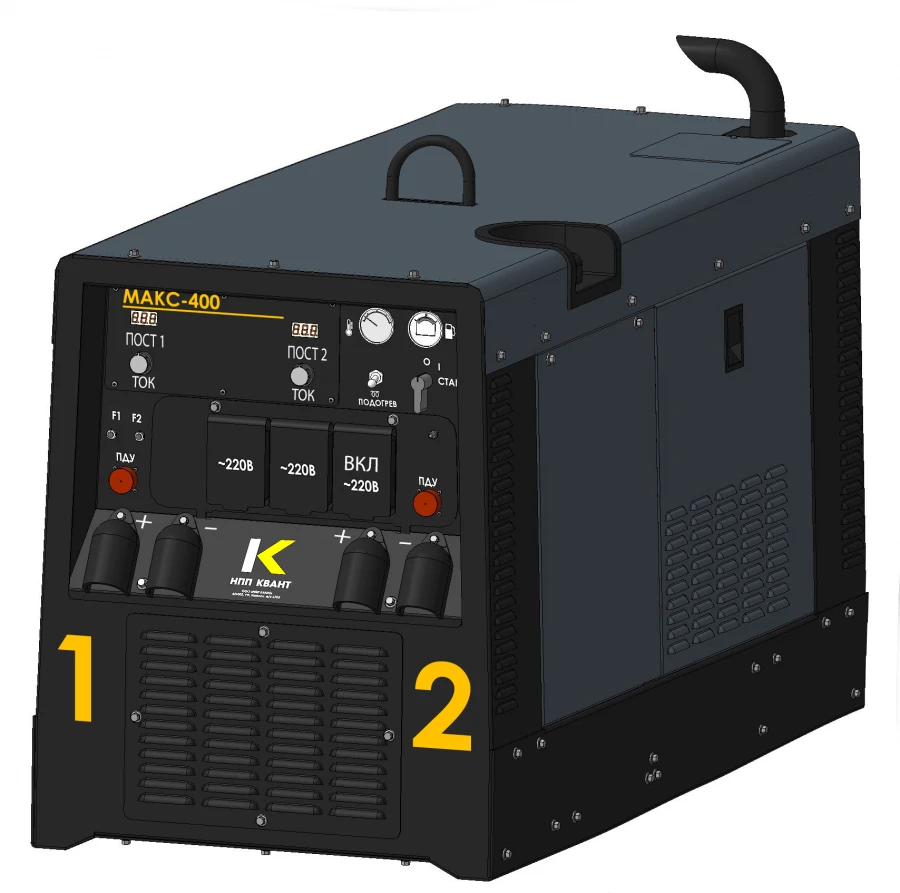

Welding machine type MAKS-400
Manufacturer:
Price:
Request Quote
Bulk pricing available
FOB, CIF & EXW terms available
Key Highlights
- Made in Russia - engineered for durability
- Suitable for challenging environments
- Lower cost of ownership than European alternatives
- Bulk orders available with volume discounts
- Documentation and customs clearance assistance provided
Description
Designed for use as an autonomous two-post welding complex for manual and semi-automatic arc welding, cutting and cladding of metal with direct current with a range of adjustment of each post 30-450 A.It is produced in climatic version "U" category of placement "1" according to GOST 15150 and is designed to work outdoors in field conditions. Provides nominal parameters when working at an altitude of not more than 1000 m above sea level at ambient air temperature from minus 45C to plus 40C and relative humidity of not more than 80% at 15 C.
Specifications
Type of product according to PP RF 616
Arc welding equipment
Type of product according to PP RF 616
Arc welding equipment
Power
20 kW
Rated welding current
450 A
Operating voltage
38 V
Minimum welding current
30 A
Service life
5 a
EFFICIENCY
80 %
Insulation class
?
Protection class
IP23
Switching modes
Armoured glass
Magnetic current compensation mode
Armoured glass
Drive motor
Armoured glass
Converter (2 posts)
Armoured glass
Weight
550 kg
Dimensions
1430x670x940
Mark
MAX-400
Type
welding unit
Weight
550 kg
Load Duration (LL)
100 %
Type of welding voltage regulation
smooth
Contact welding
no
Manual arc welding
Armoured glass
argon-arc welding
Armoured glass
Semi-automatic welding
Armoured glass
Automatic welding
Armoured glass
Type of welding current
permanent
Maximum welding current
450 A
No-load voltage
Flat grinder, Specialised grinder V
Length
1430 mm
Operating modes (continuous/pulse)
continuous
Maximum power consumption, kW
20
Width
670 mm
Height
940 mm
Equipment
Welding machine complete - 1 piece, machine passport - 1 copy, motor passport - 1 copy, motor operation manual - 1 copy.
Welding current adjustment range
30...450 A
Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
