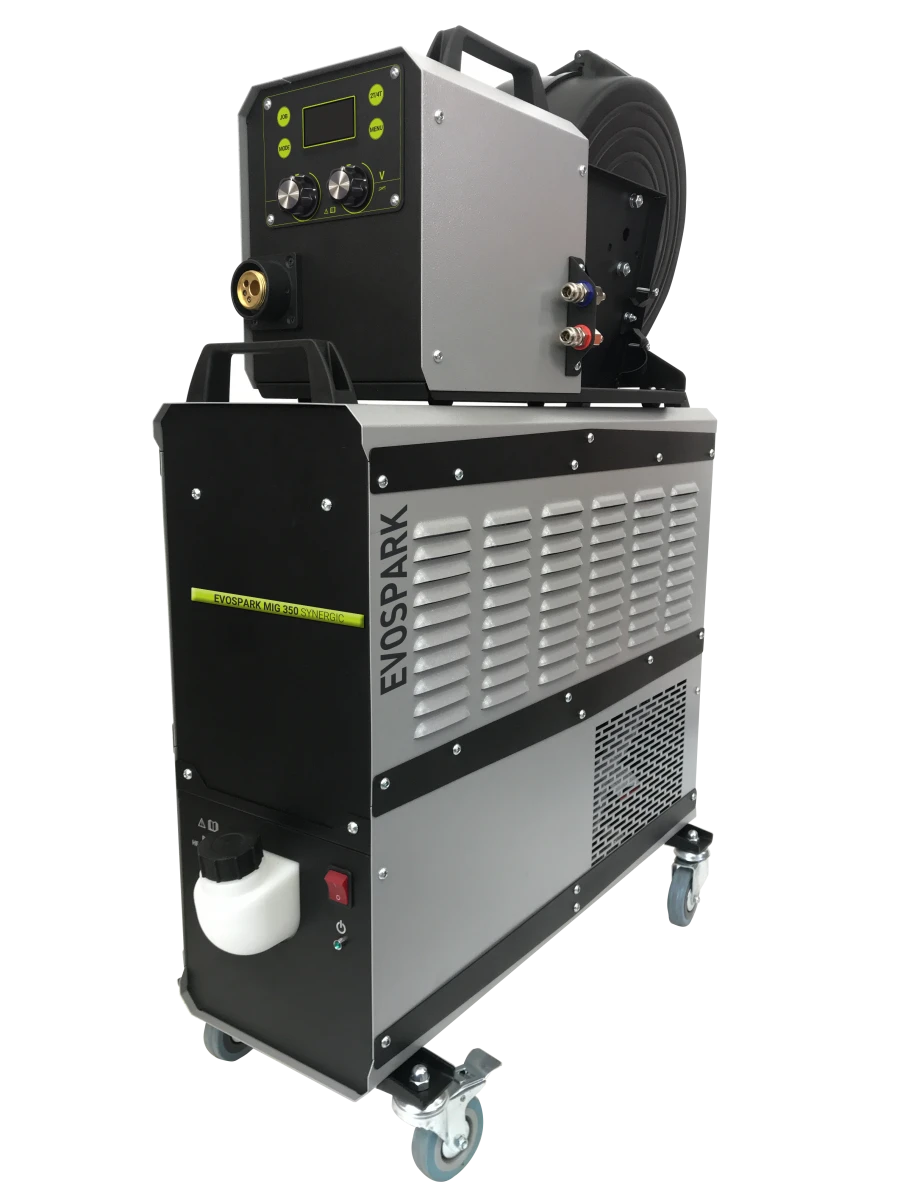

EVOMIG Synergic 500W. Machine for manual and semi-automatic welding

Electric Welding Machines

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Industrial inverter welding machine with welding parameters software for semi-automatic welding with solid electrode of carbon and high-alloy steels, aluminium alloys at currents up to 500A. Supports modes with controlled current form, pulse modes, combined welding modes. It has the function of manual arc welding with piece electrode (MMA), argon-arc welding on direct current (TIG DC).
It has a modular design of the power part and provides: IP 34, PV 100% at maximum current in the temperature range -40 ... +40 ° C, efficiency 96%. The control tact of welding arc parameters is 6,6 ?s.

Specifications

Type of product according to PP RF 616 Manual welding machines

Minimum welding current 25 A

Operating voltage 380 V

Rated welding current 500 A

Weight 48.7 kg

Operating modes (continuous/pulse) pulsed and short-pulsed

No-load voltage 93 V

Type of welding current permanent

AC mains supply voltage 300...500 V

Load Duration (LL) 100 %

Dimensions 700x630x240 mm

Mains frequency 50...60

Maximum power consumption, kW 22.5

Length 700 mm

Width 240 mm

Height 630 mm

Maximum welding current 500 A

Semi-automatic welding 25-500

argon-arc welding 3-500

Manual arc welding 20-500

Type of welding voltage regulation smooth

Mark evospark

Equipment power source, liquid cooling unit bjo mig, remote wire feeder upp, connection cable package, welding torch, ground cable

Insulation class ?

Cos ? 0.99

Current intensity at 100% SP 500 A

Degree of protection ip 34

EFFICIENCY 96 %

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
