Weighing Module for Roller Scales - 1000 kg Capacity and Applications

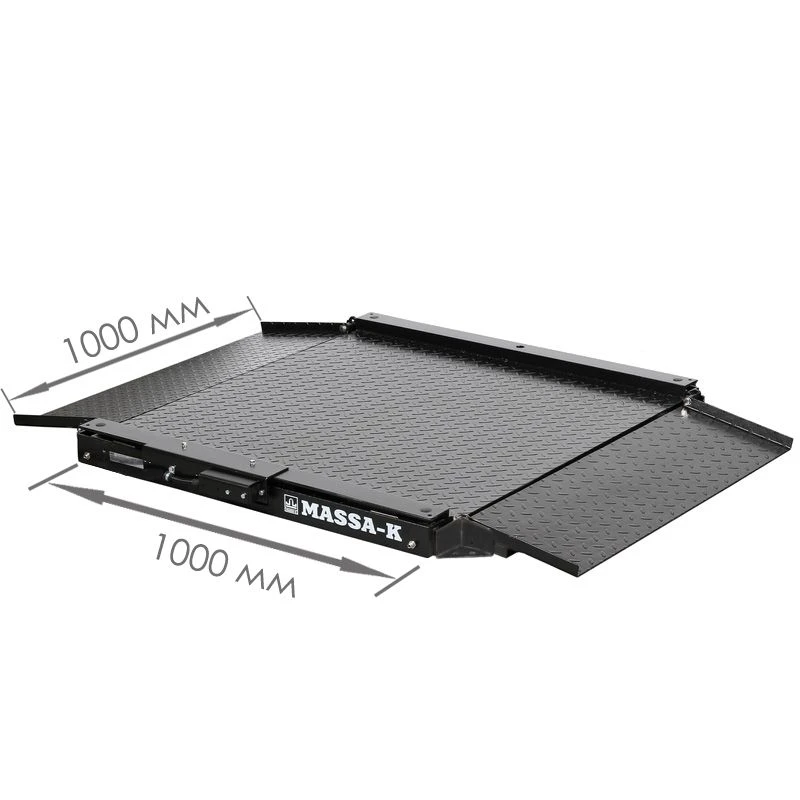

Weighing module (weighing platform) for rolling scales with ramps for the entrance of trolleys. Maximum load - 1 000 kg. Size of weighing platform - 1000x1000 mm.

Operating temperature range from -30 to +40 °?. Protection degree - IP 68. The platform is fixed on 4 digital weight sensors.

The sensors are connected to the RS-485 interface output connector via a cable-concentrator, which is used to connect a terminal or USB-adapter. It is connected to different types of weight terminals "MASSA-K": from simple, displaying only weight, to terminals with label printing. Weight terminals (equipped with interfaces) are compatible with 1C and can be easily connected to various accounting and cash register programmes.

The module can also be connected directly to a computer via "Weighing adapter USB/4D". The module is certified for compliance with the interstate standard GOST OIML R 76-1-2011. Metrological characteristics correspond to the average accuracy class.

Warranty - 3 years.
