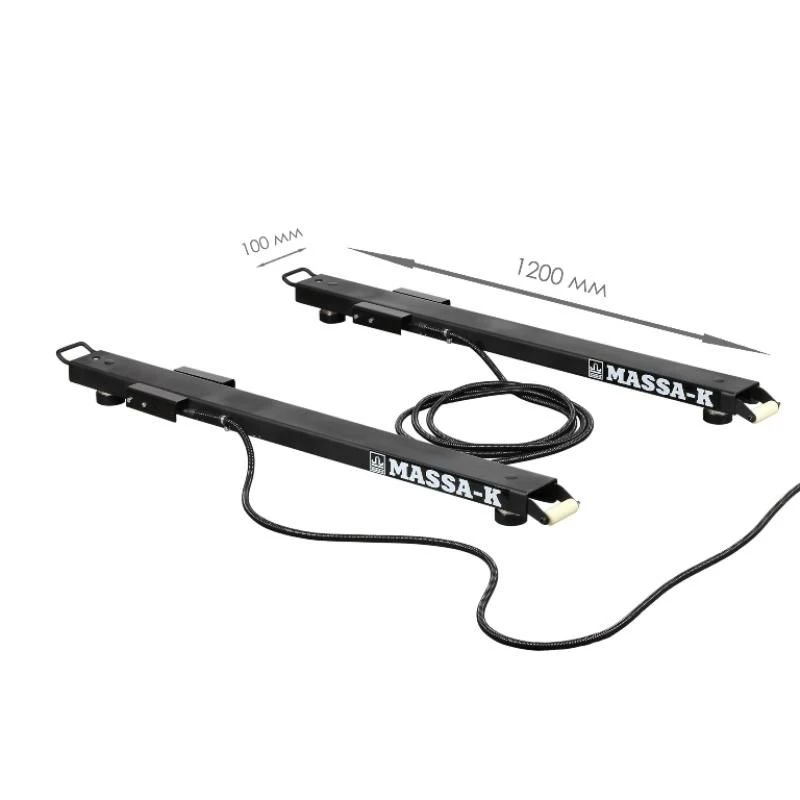

Weighing Module 4D-B-12/1-2000 for Accurate Rod Scale Measurements

Weighing module (weighing platform) for bar scales. Maximum load - 2 000 kg. Operating temperature range from -30 to +40 ° C.

Degree of protection - IP 68. The module contains two independent mobile beams with 2 digital weight sensors in each beam. The sensors are connected to the RS-485 interface output connector via a hub cable, which is used to connect a terminal or USB adapter.

It is connected to different types of weight terminals "MASSA-K": from simple, displaying only weight, to terminals with label printing. Weight terminals are compatible with 1C and can be easily connected to various accounting programmes. The module can also be connected directly to a computer via "USB/4D weighing adapter".

The module is certified for compliance with the interstate standard GOST OIML R 76-1-2011. Metrological characteristics correspond to the average accuracy class. Warranty - 3 years.
