Available for Import

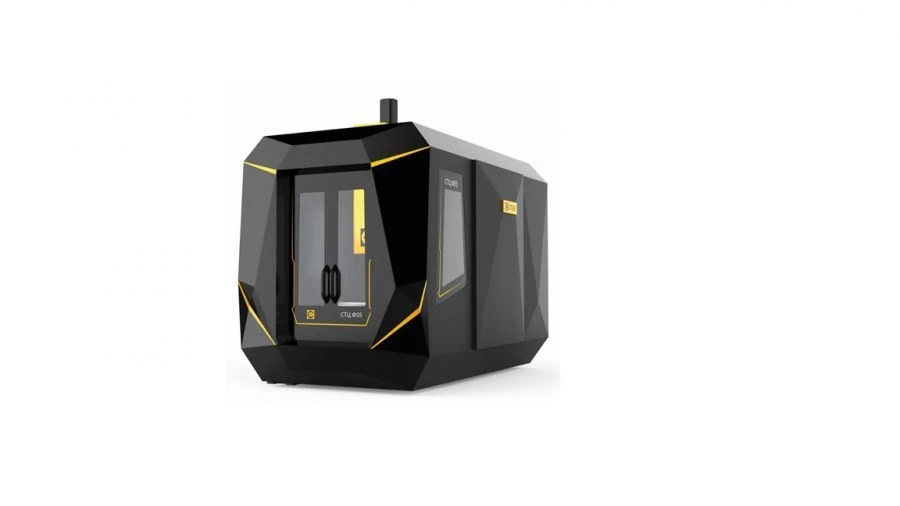

VMB55 (S500) model machining centre

Metal Machining Centres

Manufacturer:

Price: Request Quote

Bulk pricing available

FOB, CIF & EXW terms available

Email Inquiry

Key Highlights

Made in Russia - engineered for durability
Suitable for challenging environments
Lower cost of ownership than European alternatives
Bulk orders available with volume discounts
Documentation and customs clearance assistance provided

Description

Centre machining model VMB 55 is designed for complex machining of parts made of various structural materials. It contains: CNC system, mechanical spindle with belt transmission, infinitely variable spindle speed control, tilting table, linear and angular movement sensors, tool magazine, automatic lubrication system, pneumatic system, electrical equipment, lighting, cutting zone fence, coolant supply and chip cleaning system. Optional integrated spindle-motor, fixed tool turning on a rotary table, X-axis stroke extension up to 1000 mm. Optional 3-axis version of the machine (flat overhead table) or 4-axis version (flat overhead table and rotary table with horizontal axis of rotation).

Specifications

Type of product according to PP RF 616 5-axis vertical machining centers

Length 2120 mm

Width 4220 mm

Height 3300 mm

Machine type 5 axis vertical machining center

Machine weight 8000 kg

Tool cone iso 40

Tool magazine capacity 24

Linear positioning accuracy 1 mm

Vertical movement 550 mm

Transverse movement 550 mm

Longitudinal movement 600 mm

Faceplate diameter 500 mm

Number of steerable axles 5

Note: All specifications are provided by the manufacturer and may be subject to change. Please contact us to confirm the latest specifications before placing your order.
